| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09195207824 |
| Color: | Black |
| Series: | SEK Mezzanine |
| Gender: | Female |
| Housing Material: | Liquid Crystal Polymer |
| Number of Contacts: | 20 |
| Number of Rows: | 2 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold Over Palladium-Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| Mount Angle: | Straight |
| Tail Length: | 2.9 mm |
| Mating Cycles: | 50 cycle |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 1 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09195207824 |
09195207824
Specifications
Detailed Description

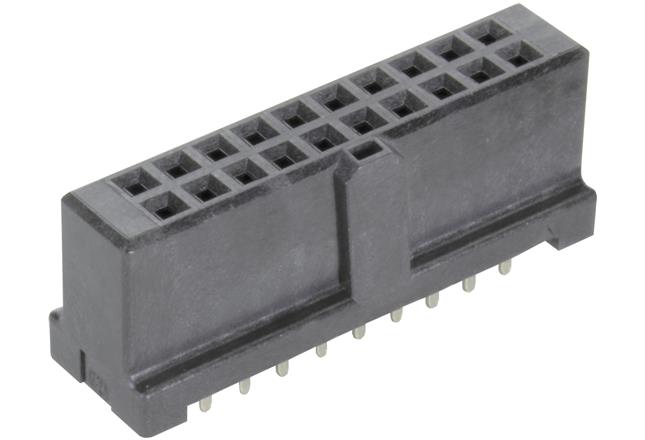

Introducing the SEK Mezzanine Female PCB Connector, SKU 09195207824, designed for high-reliability board-to-board connections. Featuring a sleek Black housing made of durable Liquid Crystal Polymer, this connector boasts 20 Gold-plated Copper Alloy contacts for optimal signal transmission. With a pitch of 2.54 mm and straight mount angle, it offers easy installation on PCBs. Operating in a wide temperature range from -55°C to 125°C, it ensures reliable performance in various environments. UL 94V-0 rated for flammability, it guarantees safety in use. With a current rating of 1A and voltage rating of 1kV, it is suitable for demanding applications. Each connector is rated for 50 mating cycles, ensuring long-term durability. Perfect for high-density board stacking, the SEK Mezzanine Female PCB Connector sets the standard for quality and reliability in electronic connections.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
