| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09195207913 |
| Color: | Beige |
| Pitch: | 2.54 mm |
| Series: | SEK Standard |
| IP Rating: | IP20 |
| Mount Angle: | Right Angle |
| Tail Length: | 2.9 mm |
| Current Rating: | 1 A |
| Number of Rows: | 2 |
| Voltage Rating: | 1 kV |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Contact Material: | Copper Alloy |
| Housing Material: | Plastic |
| Number of Contacts: | 20 |
| Termination Method: | Solder |
| Flammability Rating: | UL 94V-0 |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| SKU: | HRT09195207913 |
09195207913
Specifications
Detailed Description

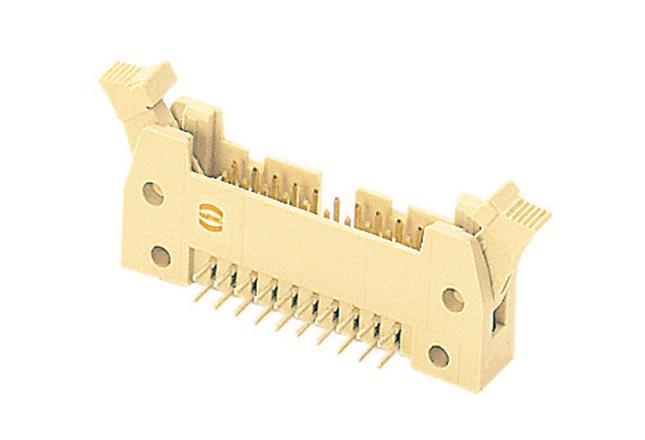

Introducing the SEK-19 SV HT MA STD ANG29 RKZ Beige PCB Pin Header, a vital component for your electronic connections. With a durable plastic housing and 20 copper alloy contacts plated with tin over nickel, this header ensures reliable performance in a wide temperature range from -55°C to 125°C. Featuring a right-angle mount and solder termination, it offers easy installation on your PCB. With an IP20 rating and UL 94V-0 flammability rating, it guarantees safety and protection. The 2.54mm pitch and 2-row design provide versatility for your connectivity needs. Rated for 1A current and 1kV voltage, it is suitable for a variety of applications. Trust in the SEK Standard series for high-quality, high-reliability connectors.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
