| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09195245904 |
| Color: | Beige |
| Series: | SEK Standard |
| Housing Material: | Plastic |
| Number of Contacts: | 24 |
| Number of Rows: | 2 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| IP Rating: | IP20 |
| Mount Angle: | Straight |
| Tail Length: | 2.9 mm |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 1 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09195245904 |
09195245904
Specifications
Detailed Description

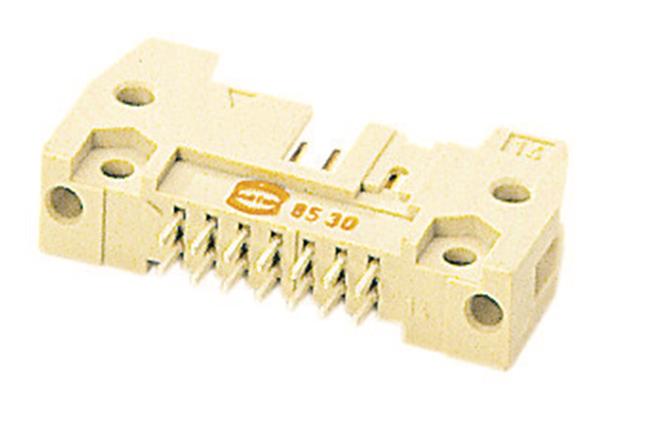

SEK Standard Connector ( 09195245904) is a male connector designed for seamless PCB to cable connections. Constructed with durable thermoplastic resin (PCT) in a sleek beige finish, this connector offers reliable performance in a wide range of applications. With 24 contacts arranged in 2 rows, it provides ample connectivity options. Featuring reflow soldering termination (THR/SMC), installation is quick and hassle-free. The copper alloy contacts with tin over nickel plating ensure excellent conductivity and corrosion resistance. With a rated current of 1A and a voltage rating of 1kV, it meets stringent performance standards. Operating temperature ranges from -55°C to 125°C, making it suitable for diverse environments. UL 94V-0 flammability rating guarantees safety. This SEK connector, part of our extensive PCB connector range, is a reliable solution for your connectivity needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
