| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09195245913 |
| Color: | Beige |
| Series: | SEK Standard |
| Housing Material: | Plastic |
| Number of Contacts: | 24 |
| Number of Rows: | 2 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| IP Rating: | IP20 |
| Mount Angle: | Right Angle |
| Tail Length: | 2.9 mm |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 1 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09195245913 |
09195245913
Specifications
Detailed Description

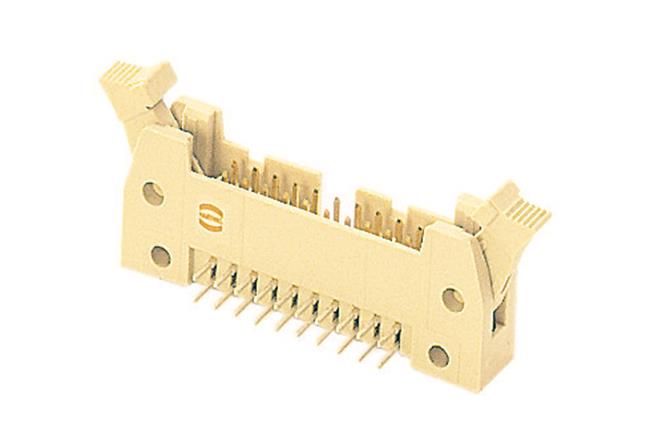

SEK Standard Connector, SKU 09195245913, offers reliable male-to-cable connectivity with its 24 copper alloy contacts plated with tin over nickel. Made of beige thermoplastic resin, the connector is designed for PCB to cable applications, featuring reflow soldering termination for efficient assembly. With a pitch of 2.54 mm and a right-angle mount angle, it provides easy installation onto circuit boards. This RoHS-compliant connector has a flammability rating of UL 94V-0, ensuring safety in operation. Rated for 1A current and 1kV voltage, it guarantees stable performance even in demanding environments, with an operating temperature range from -55°C to 125°C. Suitable for various industrial applications, the SEK Standard Connector is a dependable choice for your connectivity needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
