| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09195266904 |
| Color: | Beige |
| Series: | SEK Standard |
| Housing Material: | Plastic |
| Number of Contacts: | 26 |
| Number of Rows: | 2 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| IP Rating: | IP20 |
| Mount Angle: | Straight |
| Tail Length: | 2.9 mm |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 1 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09195266904 |
09195266904
Specifications
Detailed Description

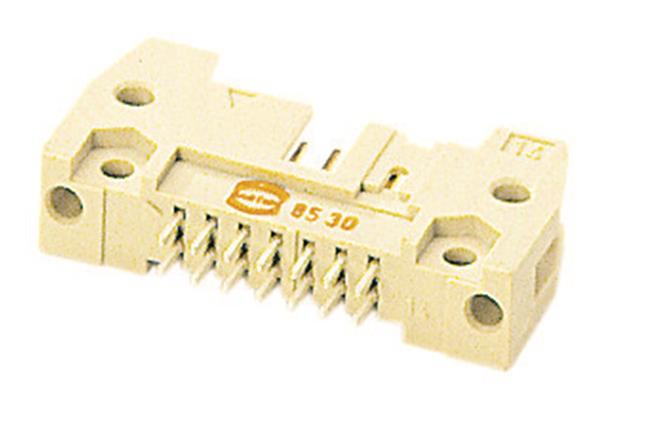

SEK Standard Male Connector is a reliable and efficient solution for PCB to cable connections. Made of high-quality thermoplastic resin (PCT) in a sleek Beige finish, this connector ensures durability and performance. With 26 contacts arranged in 2 rows and a 2.54mm pitch, it offers seamless connectivity. The reflow soldering termination method (THR/SMC) guarantees secure attachment, while the copper alloy contacts with tin over nickel and noble metal plating ensure optimal conductivity. Rated for 1A current and 1kV voltage, this connector operates flawlessly in a wide temperature range from -55°C to 125°C. With a straight mount angle and UL 94V-0 flammability rating, it meets stringent industry standards for safety and reliability. Perfect for various applications in electronics and telecommunications, the SEK Standard Male Connector is a must-have component for your projects.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
