| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09195267824 |
| Color: | Black |
| Series: | SEK Mezzanine |
| Gender: | Female |
| Housing Material: | Liquid Crystal Polymer |
| Number of Contacts: | 26 |
| Number of Rows: | 2 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold Over Palladium-Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| Mount Angle: | Straight |
| Tail Length: | 2.9 mm |
| Mating Cycles: | 50 cycle |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 1 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09195267824 |
09195267824
Specifications
Detailed Description

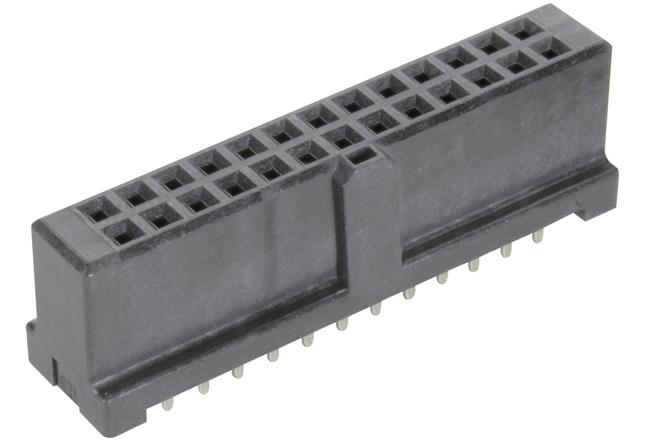

Introducing the SEK Mezzanine Black Female Connector, SKU 09195267824, designed for reliable board-to-board PCB connections. Featuring a housing made of Liquid Crystal Polymer, this connector ensures durability and high performance even in harsh environments, with a wide operating temperature range from -55°C to 125°C. With 26 gold-plated contacts in two rows, each rated for 1A at 1kV, it guarantees secure and efficient signal transmission. The solder termination method and straight mount angle make installation easy and convenient. UL 94V-0 rated for flammability, it meets stringent safety standards. Perfect for various applications, from industrial machinery to telecommunications equipment, this connector is a dependable choice for your connectivity needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
