| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09195307913001 |
| Color: | Beige |
| Series: | SEK Standard |
| Housing Material: | Plastic |
| Number of Contacts: | 30 |
| Number of Rows: | 2 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| IP Rating: | IP20 |
| Mount Angle: | Right Angle |
| Tail Length: | 2.9 mm |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 1 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09195307913001 |
09195307913001
Specifications
Detailed Description

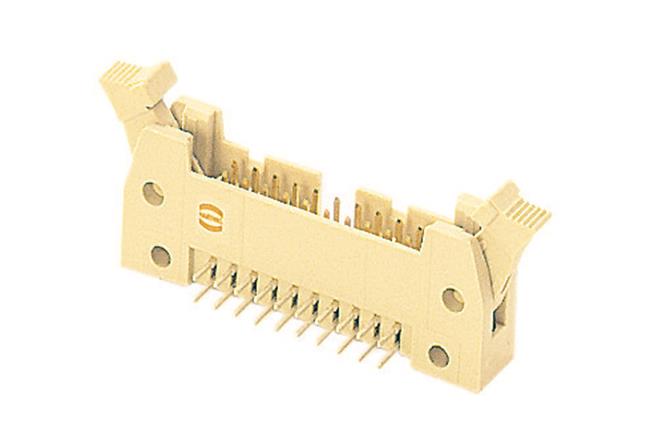

Introducing the SEK/IDC THR/SMC ANGLED MALE 2 connector, designed for high-performance applications. This beige connector, part of the SEK Standard series, features a durable plastic housing and 30 copper alloy contacts with tin over nickel and noble metal plating. With a maximum operating temperature of 125°C and a minimum of -55°C, it ensures reliable performance in various environments. The solder termination method and IP20 rating guarantee secure connections, while the right-angle mount and 2.54mm pitch offer flexibility in installation. UL 94V-0 rated for flammability, this connector is ideal for demanding industrial and commercial settings. With a current rating of 1A and voltage rating of 1kV, it meets stringent safety and performance standards. Upgrade your connectivity with the SEK/IDC THR/SMC ANGLED MALE 2 connector.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
