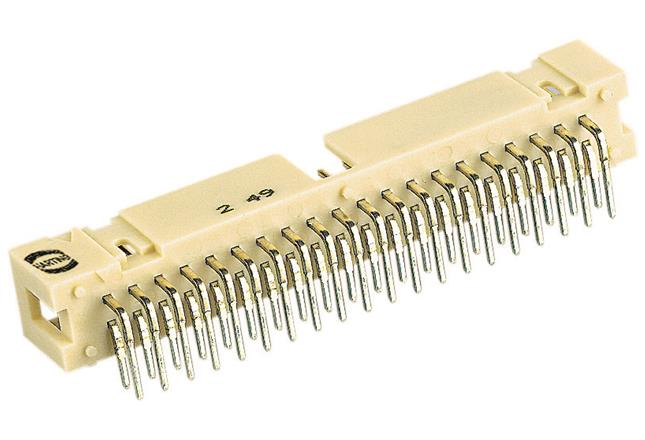

09195407323

HRT09195407323
Heilind Number:HRT09195407323
Manufacturer:HARTING
Manufacturer Number:09195407323
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

SEK, Low-profile, Connector; Male connector; Thermoplastic resin (PCT), Beige; PCB to cable; Reflow soldering termination (THR/SMC); Rated current: 1A

More >>

Specifications

AttributeValue
Product Category:
Board To Board PCB Connectors Mezzanine & Board Stacking Connectors
Manufacturer:HARTING
Manufacturer Part Number:HARTING 09195407323
Color:Beige
Pitch:2.54 mm
Gender:Male
Series:SEK Low-profile
Mount Angle:Right Angle
Tail Length:2.9 mm
Mating Cycles:50 cycle
Current Rating:1 A
Number of Rows:2
Voltage Rating:1 kV
Contact Plating:Noble Metal Over Nickel, Tin Over Nickel
Contact Material:Copper Alloy
Housing Material:Plastic
Number of Contacts:40
Termination Method:Solder
Flammability Rating:UL 94V-0
Maximum Operating Temperature:125 °C
Minimum Operating Temperature:-55 °C
Part Aliases:
SKU:HRT09195407323

Detailed Description

SEK Low-profile Connector ( 09195407323) offers reliable PCB to cable connectivity with its male connector design, featuring a thermoplastic resin (PCT) housing in a sleek beige color. Perfect for space-saving applications, this connector boasts a low-profile construction and right-angle mount angle. With 40 contacts in 2 rows, it ensures efficient signal transmission. The reflow soldering termination method (THR/SMC) guarantees secure and durable connections, while the copper alloy contacts with tin over nickel plating ensure excellent conductivity. Rated for a current of 1A and voltage of 1kV, this connector operates flawlessly in a wide temperature range from -55°C to 125°C. UL 94V-0 rated for flammability, it meets stringent safety standards. Ideal for high-reliability applications, this SEK connector is a dependable choice for board-to-board and mezzanine connectivity.
