| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09195407829 |
| Color: | Black |
| Pitch: | 2.54 mm |
| Gender: | Female |
| Series: | SEK Mezzanine |
| Mount Angle: | Straight |
| Tail Length: | 4.5 mm |
| Mating Cycles: | 50 cycle |
| Current Rating: | 1 A |
| Number of Rows: | 2 |
| Voltage Rating: | 1 kV |
| Contact Plating: | Gold Over Palladium-Nickel, Nickel |
| Contact Material: | Copper Alloy |
| Housing Material: | Liquid Crystal Polymer |
| Number of Contacts: | 40 |
| Termination Method: | Press-Fit |
| Flammability Rating: | UL 94V-0 |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| SKU: | HRT09195407829 |
09195407829
Specifications
Detailed Description

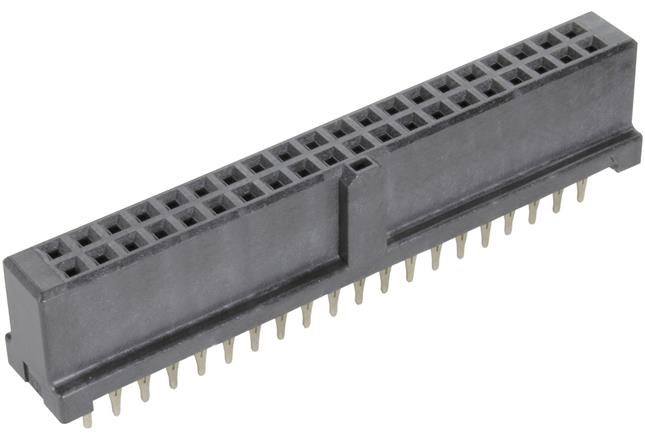

Introducing the SEK Mezzanine Female Connector in sleek Black, featuring a durable Liquid Crystal Polymer housing. With 40 gold-plated contacts and a 2-row, 2.54mm pitch design, this Press-Fit termination connector ensures secure and reliable board-to-board connections. Operating efficiently in temperatures ranging from -55°C to 125°C, it is ideal for a wide range of applications. Boasting a straight mount angle and a tail length of 4.5mm, it offers easy installation and optimal performance. Rated for 50 mating cycles and UL 94V-0 flammability, this connector guarantees longevity and safety. With a current rating of 1A and voltage rating of 1kV, it is suitable for various electronic systems. Upgrade your PCB connections with the SEK Mezzanine Female Connector - the perfect choice for high-quality, high-performance connectivity.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
