| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09195506324 |
| Color: | Beige |
| Pitch: | 2.54 mm |
| Gender: | Male |
| Series: | SEK Low-profile |
| IP Rating: | IP20 |
| Mount Angle: | Straight |
| Tail Length: | 2.9 mm |
| Mating Cycles: | 250 cycle |
| Current Rating: | 1 A |
| Number of Rows: | 2 |
| Voltage Rating: | 1 kV |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Contact Material: | Copper Alloy |
| Housing Material: | Plastic |
| Number of Contacts: | 50 |
| Termination Method: | Solder |
| Flammability Rating: | UL 94V-0 |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| SKU: | HRT09195506324 |
09195506324
Specifications
Detailed Description

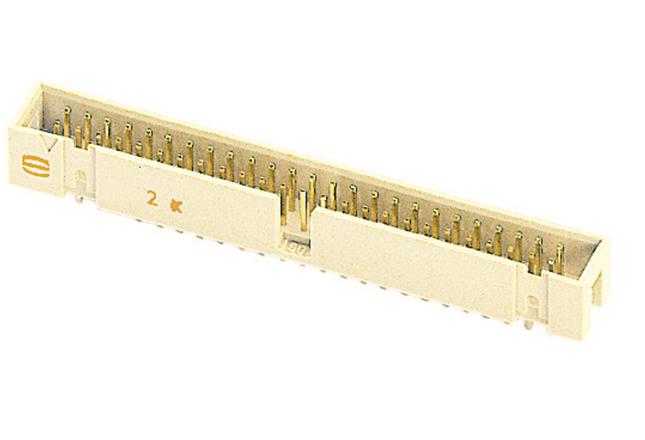

Introducing the SEK Low-profile Connector, designed for seamless PCB to cable connections. This male connector features a durable thermoplastic resin housing in a sleek beige finish. With reflow soldering termination, installation is quick and easy. Boasting a rated current of 1A, it ensures reliable power transmission. With 50 contacts in 2 rows, it offers ample connectivity options. The copper alloy contacts with tin over nickel plating guarantee superior conductivity. Operating flawlessly in temperatures ranging from -55°C to 125°C, it's suitable for a wide range of applications. With a pitch of 2.54mm and IP20 rating, it ensures precise and secure connections. Trust the SEK Connector for efficient and durable board-to-board PCB connections.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
