| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09195506829 |
| Color: | Black |
| Series: | SEK Mezzanine |
| Gender: | Female |
| Housing Material: | Liquid Crystal Polymer |
| Number of Contacts: | 50 |
| Number of Rows: | 2 |
| Termination Method: | Press-Fit |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold Over Palladium-Nickel, Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| Mount Angle: | Straight |
| Tail Length: | 4.5 mm |
| Mating Cycles: | 250 cycle |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 1 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09195506829 |
09195506829
Specifications
Detailed Description

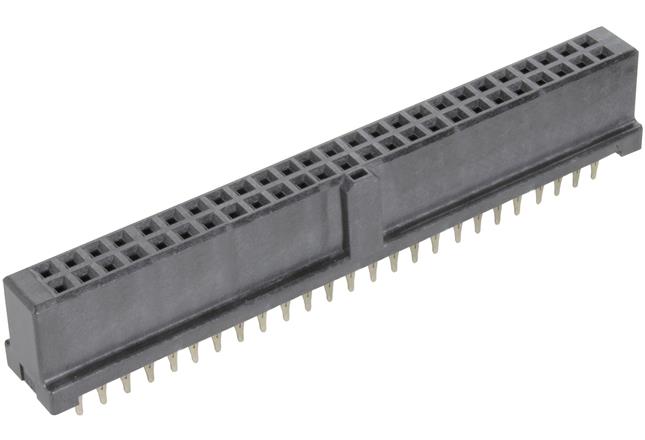

The 09195506829 Black SEK Mezzanine Female Connector is a high-performance component designed for board-to-board PCB connections. Featuring a durable Liquid Crystal Polymer housing, this connector ensures reliable operation even in harsh environments, with a wide temperature range of -55°C to 125°C. With 50 gold-plated contacts in a 2-row configuration, it offers secure and efficient data transmission. The Press-Fit termination method simplifies installation, while the straight mount angle and 4.5mm tail length provide flexibility in PCB layout. Tested for 250 mating cycles and rated UL 94V-0 for flammability, this connector guarantees long-lasting performance and safety. Ideal for applications requiring a current rating of 1A at 1kV, it is a dependable choice for demanding electronic systems.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
