| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09195606829 |
| Color: | Black |
| Series: | SEK Mezzanine |
| Gender: | Female |
| Housing Material: | Liquid Crystal Polymer |
| Number of Contacts: | 60 |
| Number of Rows: | 2 |
| Termination Method: | Press-Fit |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold Over Palladium-Nickel, Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| Mount Angle: | Straight |
| Tail Length: | 4.5 mm |
| Mating Cycles: | 250 cycle |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 1 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09195606829 |
09195606829
Specifications
Detailed Description

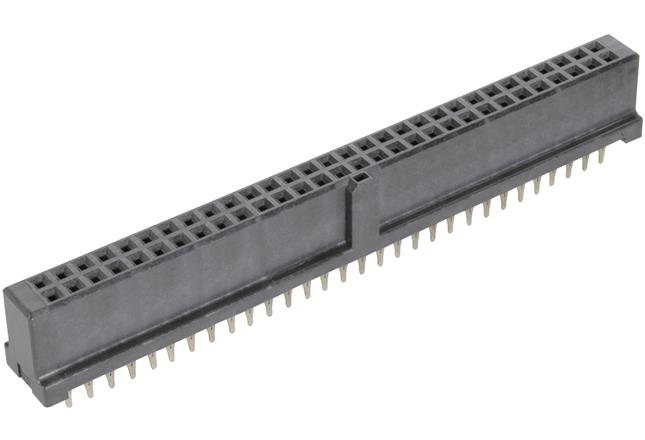

The 09195606829 Black SEK Mezzanine Female Connector is a high-performance component designed for board-to-board PCB connections. Featuring a durable Liquid Crystal Polymer housing and 60 gold-plated contacts, this connector ensures reliable signal transmission in demanding environments. With a pitch of 2.54 mm and a straight mount angle, it offers easy installation on PCBs. Its press-fit termination method allows for secure and efficient assembly. Rated for a wide temperature range from -55°C to 125°C, it is suitable for use in various applications. This connector is UL 94V-0 rated for flame resistance and has a maximum current rating of 1 A and voltage rating of 1 kV, making it ideal for high-speed data and power transmission. With a mating cycle durability of 250 cycles, it guarantees long-term performance. The 09195606829 is a reliable and cost-effective solution for your connectivity needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
