| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09195607822 |
| Color: | Black |
| Series: | SEK Mezzanine |
| Gender: | Female |
| Housing Material: | Liquid Crystal Polymer |
| Number of Contacts: | 60 |
| Number of Rows: | 2 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold Over Palladium-Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| Mount Angle: | Straight |
| Tail Length: | 4.5 mm |
| Mating Cycles: | 50 cycle |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 1 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09195607822 |
09195607822
Specifications
Detailed Description

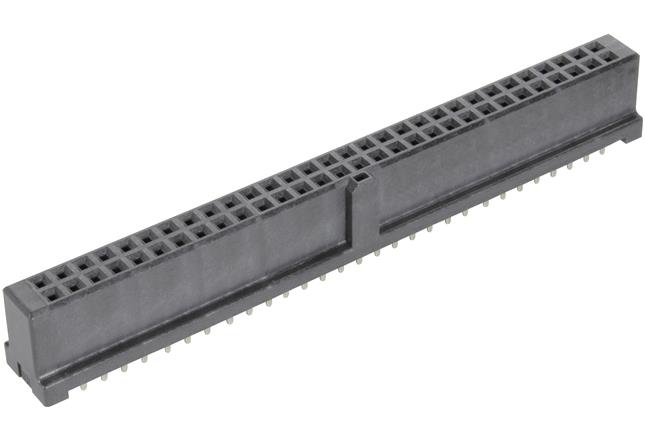

Introducing the SEK Mezzanine Black Female Connector, SKU 09195607822, meticulously designed for high-performance board-to-board PCB connections. This connector features a sleek black housing constructed from durable Liquid Crystal Polymer, ensuring long-lasting reliability in even the most demanding environments. With 60 gold-plated contacts in a 2-row configuration, each termination is secure and efficient, rated for up to 50 mating cycles. Operating seamlessly between temperatures ranging from -55°C to 125°C, this connector guarantees optimal performance in any application. Its straight mount angle and 2.54mm pitch offer versatile installation options, while UL 94V-0 flammability rating ensures safety compliance. With a current rating of 1A and voltage rating of 1kV, the SEK Mezzanine Connector is the perfect choice for high-speed and high-density connectivity in various electronic systems.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
