| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09221322921 |
| Color: | Pebble Gray |
| Series: | DIN 41612 |
| Gender: | Male |
| Housing Material: | Glass-Filled Plastic |
| Number of Contacts: | 32 |
| Number of Rows: | 2 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold Over Electroless Nickel Phosphorus Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| Mount Angle: | Right Angle |
| Mating Cycles: | 500 cycle |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 2 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09221322921 |
09221322921
Specifications
Detailed Description

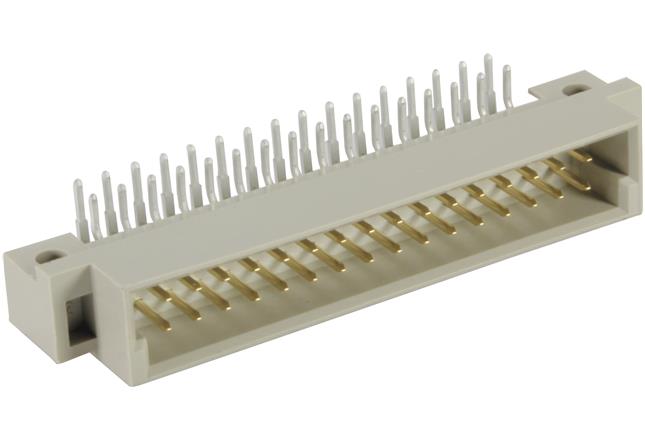

Introducing the DIN 41612 Type 2B Connector, a vital component for seamless motherboard to daughtercard and extender card connections. This male connector boasts a robust construction, with a housing made of glass-filled plastic ensuring durability. With 32 contacts arranged in 2 rows on a 2.54mm pitch, it offers reliable signal transmission. The termination method is solder, with copper alloy contacts plated for optimal conductivity. Operating between -55°C to 125°C, it guarantees performance in diverse environments. Rated for 2A current and 1kV voltage, it meets stringent quality standards. RoHS compliant and UL 94V-0 rated for safety, this connector is ideal for high-speed and high-density applications in the electronics industry.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
