| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09231327921 |
| Color: | Pebble Gray |
| Pitch: | 2.54 mm |
| Gender: | Male |
| Series: | DIN 41612 |
| Mount Angle: | Right Angle |
| Mating Cycles: | 50 cycle |
| Current Rating: | 2 A |
| Number of Rows: | 3 |
| Voltage Rating: | 1 kV |
| Contact Plating: | Gold Over Electroless Nickel Phosphorus Over Nickel, Tin Over Nickel |
| Contact Material: | Copper Alloy |
| Housing Material: | Glass-Filled Plastic |
| Number of Contacts: | 32 |
| Termination Method: | Solder |
| Flammability Rating: | UL 94V-0 |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| SKU: | HRT09231327921 |
09231327921
Specifications
Detailed Description

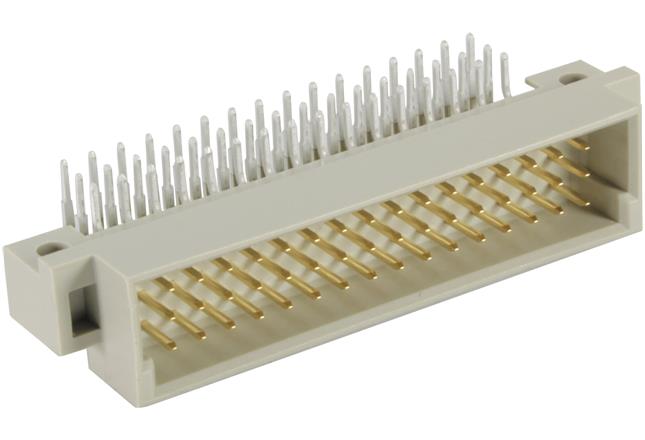

Introducing the DIN 41612 Type 2C Connector, a versatile and reliable solution for connecting motherboards to daughtercards, extender cards, and PCBs to cables. This male connector features a durable housing made of glass-filled plastic in a sleek Pebble Gray color. With 32 contacts arranged in 3 rows and a convenient solder termination method, it ensures secure and efficient connectivity. The contacts are made of copper alloy with tin plating, offering excellent conductivity and corrosion resistance. Rated for operating temperatures ranging from -55°C to 125°C, and boasting a high flammability rating of UL 94V-0, this connector guarantees safety and performance in any environment. With a pitch of 2.54mm and right-angle mount, it is suitable for a wide range of applications. Trust in the DIN 41612 Type 2C Connector for your board-to-board and PCB connection needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
