| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09232326823 |
| Series: | DIN 41612 |
| Gender: | Female |
| Housing Material: | Glass-Filled Plastic |
| Number of Contacts: | 32 |
| Number of Rows: | 3 |
| Termination Method: | Solder |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| Mount Angle: | Straight |
| Mating Cycles: | 400 cycle |
| Performance Level: | Class II |
| Current Rating: | 2 A |
| Voltage Rating: | 1.55 kV, 1 kV |
| SKU: | HRT09232326823 |
09232326823
Specifications
Detailed Description

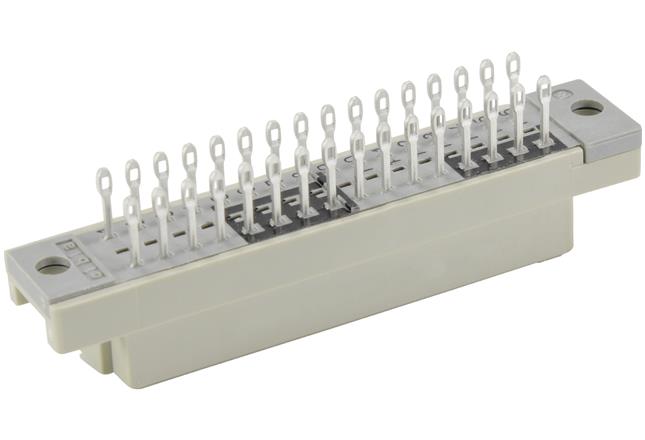

Introducing the DIN 41612 Type 2C Female Connector, a high-performance solution for PCB to cable connections. Constructed with durable thermoplastic resin and glass-fibre filling, this connector is built to last in demanding environments. Featuring Solder lug termination and a maximum operating temperature of 125°C, it ensures reliable performance even in extreme conditions. With a rating of 2A and RoHS compliance, it meets stringent industry standards for safety and efficiency. The 32 contacts, arranged in 3 rows with a 2.54mm pitch, offer ample connectivity options. Tin over nickel plating provides excellent conductivity, while the straight mount angle allows for easy installation. Perfect for backplane and board-to-board applications, this DIN 41612 connector is a versatile choice for any project.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
