| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09232482825 |
| Color: | Pebble Gray |
| Pitch: | 2.54 mm |
| Gender: | Female |
| Series: | DIN 41612 |
| Mount Angle: | Straight |
| Tail Length: | 4.5 mm |
| Mating Cycles: | 500 cycle |
| Current Rating: | 2 A |
| Number of Rows: | 3 |
| Voltage Rating: | 1 kV |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Contact Material: | Copper Alloy |
| Housing Material: | Glass-Filled Plastic |
| Number of Contacts: | 48 |
| Termination Method: | Solder |
| Flammability Rating: | UL 94V-0 |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| SKU: | HRT09232482825 |
09232482825
Specifications
Detailed Description

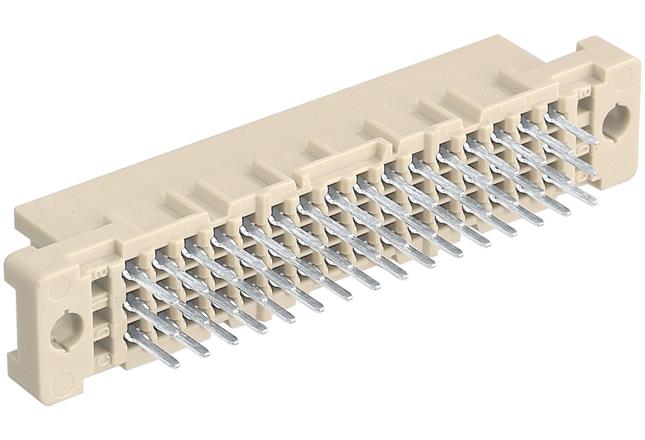

Meet the 09232482825 DIN 41612 Type 2C Connector, a vital component for seamless motherboard-to-daughtercard connectivity. Designed for efficiency and durability, this female connector features a robust housing made of thermoplastic resin with glass-fibre fill, ensuring reliable performance in various environments. With 48 contacts spread across three rows, it allows for high-speed data transfer with a pitch of 2.54mm. The solder termination method guarantees secure attachment, while the copper alloy contacts plated with tin over nickel provide excellent conductivity. Operating at temperatures ranging from -55°C to 125°C, and with a voltage rating of 1kV, this connector is suitable for a wide range of applications. Its UL 94V-0 flammability rating and RoHS compliance further ensure safety and environmental responsibility. Upgrade your connectivity solutions with the 09232482825, a pinnacle of quality in the world of PCB connectors.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
