| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09232482850 |
| Color: | Pebble Gray |
| Series: | DIN 41612 |
| Gender: | Female |
| Housing Material: | Glass-Filled Plastic |
| Number of Contacts: | 48 |
| Number of Rows: | 3 |
| Termination Method: | Press-Fit |
| Contact Material: | Copper Alloy |
| Contact Plating: | Nickel, Noble Metal Over Nickel |
| Maximum Operating Temperature: | 105 °C |
| Minimum Operating Temperature: | -40 °C |
| Pitch: | 2.54 mm |
| Mount Angle: | Straight |
| Tail Length: | 4.5 mm |
| Mating Cycles: | 500 cycle |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 2 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09232482850 |
09232482850
Specifications
Detailed Description

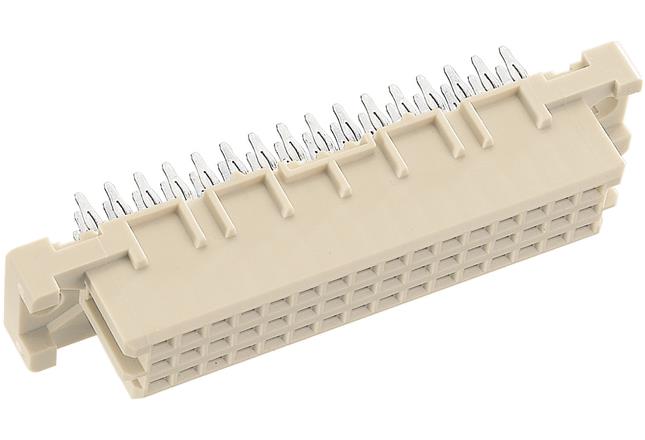

The DIN 41612 Type 2C Female Connector is a reliable and durable component designed for motherboard to daughtercard or mezzanine connections. Made of high-quality thermoplastic resin with glass-fibre filling, this pebble gray connector ensures secure and stable performance in various applications. Featuring press-in termination for easy installation, it has 48 contacts arranged in 3 rows with a pitch of 2.54mm. The copper alloy contacts with nickel plating guarantee excellent conductivity and corrosion resistance. With a wide operating temperature range of -40°C to 105°C and UL 94V-0 flammability rating, this connector is suitable for use in harsh environments. It has a current rating of 2A and voltage rating of 1kV, making it ideal for board to board PCB connections. The DIN 41612 Type 2C Female Connector is a dependable choice for your connectivity needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
