| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09232485866 |
| Color: | Pebble Gray |
| Series: | DIN 41612 |
| Gender: | Female |
| Housing Material: | Glass-Filled Plastic |
| Number of Contacts: | 48 |
| Number of Rows: | 3 |
| Termination Method: | Press-Fit |
| Contact Material: | Copper Alloy |
| Contact Plating: | Nickel, Noble Metal Over Nickel |
| Maximum Operating Temperature: | 105 °C |
| Minimum Operating Temperature: | -40 °C |
| Pitch: | 2.54 mm |
| Mount Angle: | Straight |
| Tail Length: | 3.7 mm |
| Mating Cycles: | 500 cycle |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 2 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09232485866 |
09232485866
Specifications
Detailed Description

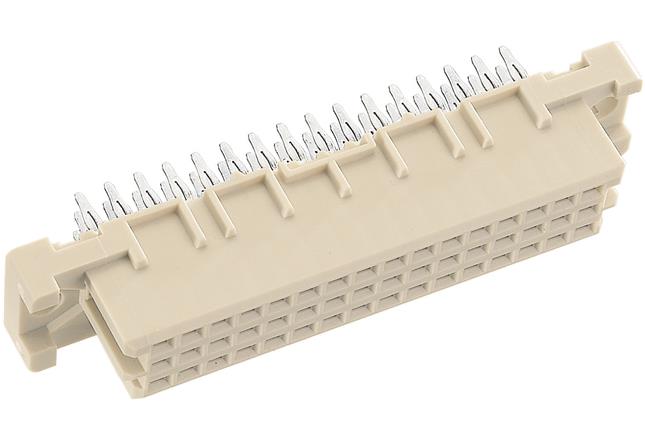

Introducing the DIN-SIGNAL 2C048FP-3 7C1-1, a high-performance female connector designed for seamless board-to-board PCB connectivity. Its Pebble Gray housing, made of durable glass-filled plastic, houses 48 copper alloy contacts plated with nickel for optimal conductivity. With a pitch of 2.54mm and a straight mount angle, it offers easy installation. Operating between -40°C to 105°C, this connector is suitable for a wide range of environments. Its press-fit termination method ensures secure and reliable connections, with a 500-cycle mating lifespan. With a UL 94V-0 flammability rating and RoHS compliance, it meets strict safety standards. Perfect for applications requiring 2A current and 1kV voltage ratings, the DIN-SIGNAL 2C048FP-3 7C1-1 is a dependable choice for your connectivity needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
