| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09232486850222 |
| Color: | Light Gray |
| Series: | DIN 41612 |
| Gender: | Female |
| Housing Material: | Glass-Filled Plastic |
| Number of Contacts: | 48 |
| Number of Rows: | 3 |
| Termination Method: | Press-Fit |
| Contact Material: | Copper Alloy |
| Contact Plating: | Nickel, Noble Metal Over Nickel |
| Maximum Operating Temperature: | 105 °C |
| Minimum Operating Temperature: | -40 °C |
| Pitch: | 2.54 mm |
| Mount Angle: | Straight |
| Tail Length: | 4.5 mm |
| Mating Cycles: | 400 cycle |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 2 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09232486850222 |
09232486850222
Specifications
Detailed Description

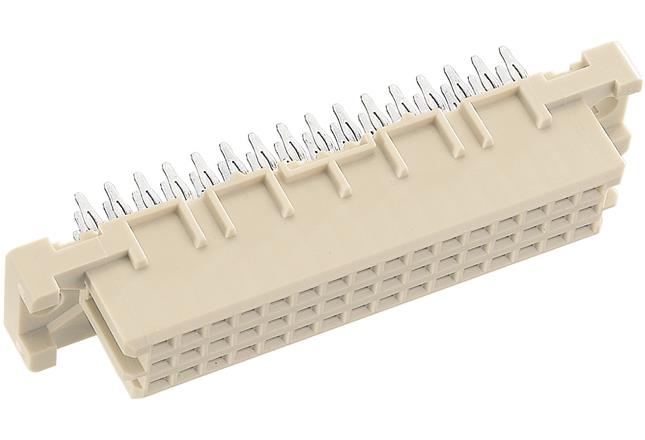

Introducing the DIN 41612 Type 2C Connector, a vital component for seamless motherboard to daughtercard connectivity in electronic systems. This female connector, made of durable thermoplastic resin with glass-fibre reinforcement, ensures reliable performance in demanding environments. With 48 contacts arranged in three rows on a 2.54mm pitch, it offers high-density connectivity for data and power transmission. The press-fit termination method guarantees secure and efficient installation, while the nickel-plated copper alloy contacts provide excellent conductivity and corrosion resistance. Operating between -40°C to 105°C, this connector is suitable for a wide range of applications. Meeting UL 94V-0 flammability standards and rated for 2A current and 1kV voltage, it ensures safety and compliance. Whether for industrial machinery, telecommunications equipment, or aerospace systems, the DIN 41612 Type 2C Connector delivers robust and high-performance interconnect solutions.
