| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09234485841 |
| Color: | Beige |
| Series: | DIN 41612 |
| Gender: | Female |
| Housing Material: | Glass-Filled Plastic |
| Number of Contacts: | 48 |
| Number of Rows: | 3 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| Mount Angle: | Straight |
| Tail Length: | 2.9 mm |
| Mating Cycles: | 500 cycle |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 2 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09234485841 |
09234485841
Specifications
Detailed Description

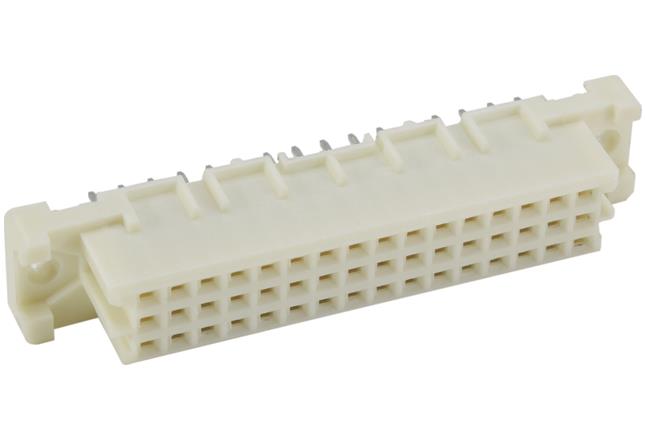

Introducing the DIN-SIGNAL 2C048FR-2 9C1-2-CLI, a high-performance female connector designed for reliable board-to-board PCB connections. Featuring a sleek beige housing made of durable glass-filled plastic, this DIN 41612 series connector is built to withstand tough industrial environments. With 48 gold-plated contacts in three rows, it ensures efficient signal transmission with a current rating of 2A and a voltage rating of 1kV. The solder termination method and 2.54mm pitch guarantee secure and stable connections. Operating seamlessly in temperatures ranging from -55°C to 125°C, it is suitable for a wide range of applications. With a UL 94V-0 flammability rating and RoHS compliance, it meets stringent safety and environmental standards. Trust in the DIN-SIGNAL connector for top-quality performance in your electronic designs.
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 09/01/2023 | PTN-23-004CNUS - Material Change & REV Change. Due to technical and logistical reasons, HARTING will change the plastic material of both THR & NFF DIN products to a new material. The colour of the new material is light grey. Part numbers stay unchanged. Revision level will be increased according to attached part number list. | Download | |||
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
