| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09252306841 |
| Color: | Beige |
| Series: | DIN 41612 |
| Gender: | Female |
| Housing Material: | Glass-Filled Plastic |
| Number of Contacts: | 30 |
| Number of Rows: | 3 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| Mount Angle: | Straight |
| Tail Length: | 2.9 mm |
| Mating Cycles: | 400 cycle |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 2 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09252306841 |
09252306841
Specifications
Detailed Description

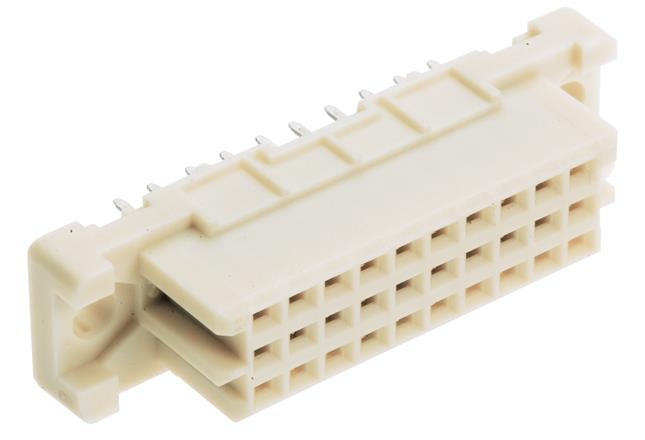

Introducing the DIN 41612 Type 3C Connector, a crucial component for seamless motherboard to daughtercard and mezzanine connections. This female connector boasts a durable construction of thermoplastic resin with glass-fibre filling, ensuring reliability in demanding environments. With 30 contacts spread across 3 rows, it facilitates efficient signal transmission. Solder termination and copper alloy contacts with tin over nickel plating guarantee secure and stable connections. Operating between -55°C to 125°C, this connector is suitable for a wide range of applications. Its UL 94V-0 flammability rating and 1 kV voltage rating ensure safety and compliance. Designed for straight mounting with a 2.54 mm pitch, it offers versatility in PCB layouts. With a tail length of 2.9 mm and 400 mating cycles, it is built for longevity and convenience. Trust in the DIN 41612 Type 3C Connector for high-performance connectivity in your electronic systems.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
