| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09281326903 |
| Color: | Pebble Gray |
| Series: | DIN 41612 |
| Gender: | Male |
| Housing Material: | Glass-Filled Plastic |
| Number of Contacts: | 32 |
| Number of Rows: | 3 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold Over Electroless Nickel Phosphorus Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| Mount Angle: | Straight |
| Tail Length: | 4 mm |
| Mating Cycles: | 400 cycle |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 2 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09281326903 |
09281326903
Specifications
Detailed Description

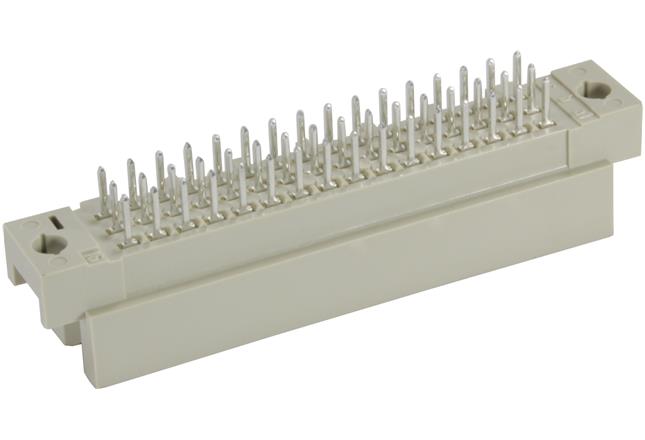

This DIN 41612 Type 2R Connector is a Male connector designed for high-performance applications. Constructed from durable thermoplastic resin with glass-fibre filling, it ensures robust connectivity between Motherboard to daughtercard, Mezzanine, and PCB to cable. Featuring a Pebble Gray color, it seamlessly integrates into any system. With 32 contacts arranged in 3 rows, it offers ample connectivity options. The Solder termination method and Copper Alloy contacts with Tin, Gold, and Nickel plating guarantee reliable signal transmission. Rated for a wide operating temperature range of -55°C to 125°C, it is suitable for use in demanding environments. RoHS compliant and with a UL 94V-0 flammability rating, it meets strict quality standards. Ideal for Board To Board PCB, Connectors, and Mezzanine & Board Stacking applications, this connector is a dependable choice for your connectivity needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
