| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09282326801 |
| Color: | Pebble Gray |
| Pitch: | 2.54 mm |
| Gender: | Female |
| Series: | DIN 41612 |
| Mount Angle: | Right Angle |
| Tail Length: | 3 mm |
| Mating Cycles: | 400 cycle |
| Current Rating: | 2 A |
| Number of Rows: | 3 |
| Voltage Rating: | 1 kV |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Contact Material: | Copper Alloy |
| Housing Material: | Glass-Filled Plastic |
| Number of Contacts: | 32 |
| Termination Method: | Solder |
| Flammability Rating: | UL 94V-0 |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| SKU: | HRT09282326801 |
09282326801
Specifications
Detailed Description

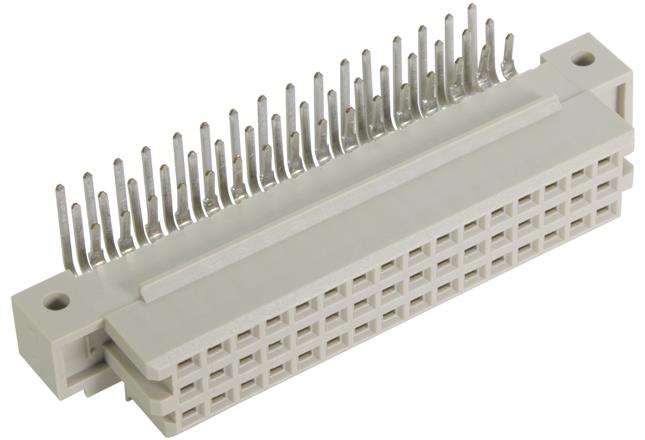

Introducing the DIN 41612 Type 2R Connector, designed for seamless connectivity in a variety of applications. This Female connector features a durable housing made of thermoplastic resin with glass-fibre filling, ensuring reliable performance even in demanding environments. With 32 contacts arranged in 3 rows and a pitch of 2.54mm, it provides ample connectivity options for motherboard to daughtercard and extender card setups. The solder termination method and copper alloy contacts with tin over nickel plating guarantee secure and stable connections. Operating between -55°C to 125°C, this connector is suitable for a wide range of temperature conditions. Its Pebble Gray color and UL 94V-0 flammability rating add to its versatility. Rated for 2A and 1kV, it meets high standards for current and voltage requirements. Perfect for board-to-board PCB connections, this DIN 41612 connector is a reliable choice for your connectivity needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
