| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09282486801 |
| Color: | Pebble Gray |
| Pitch: | 2.54 mm |
| Gender: | Female |
| Series: | DIN 41612 |
| Mount Angle: | Right Angle |
| Tail Length: | 3 mm |
| Mating Cycles: | 400 cycle |
| Current Rating: | 2 A |
| Number of Rows: | 3 |
| Voltage Rating: | 1 kV |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Contact Material: | Copper Alloy |
| Housing Material: | Glass-Filled Plastic |
| Number of Contacts: | 48 |
| Termination Method: | Solder |
| Flammability Rating: | UL 94V-0 |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| SKU: | HRT09282486801 |
09282486801
Specifications
Detailed Description

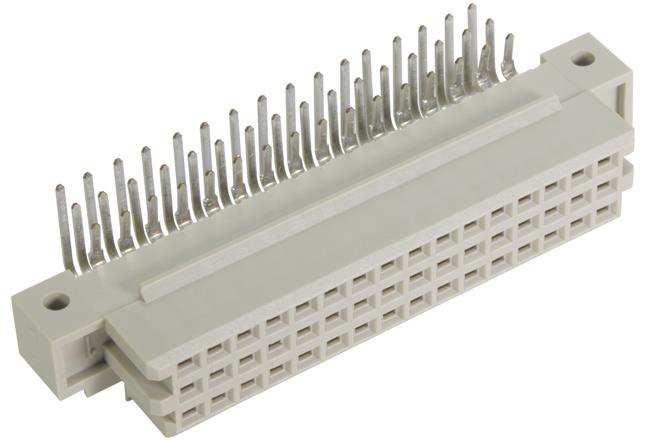

Introducing the DIN 41612 Type 2R Connector, a crucial component for seamless motherboard to daughtercard and extender card connections. This female connector, made of durable thermoplastic resin with glass-fibre filling, offers reliable performance in demanding environments. With 48 contacts arranged in three rows and a 2.54mm pitch, it ensures efficient signal transmission. The copper alloy contacts plated with tin over nickel and noble metal over nickel guarantee excellent conductivity and corrosion resistance. Operating between -55°C to 125°C, this connector is suitable for a wide range of applications. Its UL 94V-0 flammability rating, 2A current rating, and 1kV voltage rating ensure safety and compliance. RoHS compliant and with a mating cycle of 400, it's a dependable choice for board to board PCB connections.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
