| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09291302904 |
| Pitch: | 2.54 mm |
| Gender: | Male |
| Series: | DIN 41612 |
| Mount Angle: | Straight |
| Tail Length: | 5 mm |
| Mating Cycles: | 500 cycle |
| Current Rating: | 2 A |
| Number of Rows: | 3 |
| Voltage Rating: | 1 kV |
| Contact Plating: | Nickel, Noble Metal Over Nickel |
| Housing Material: | Plastic |
| Performance Level: | Class I |
| Number of Contacts: | 30 |
| Termination Method: | Press-Fit |
| Maximum Operating Temperature: | 105 °C |
| Minimum Operating Temperature: | -40 °C |
| SKU: | HRT09291302904 |
09291302904
Specifications
Detailed Description

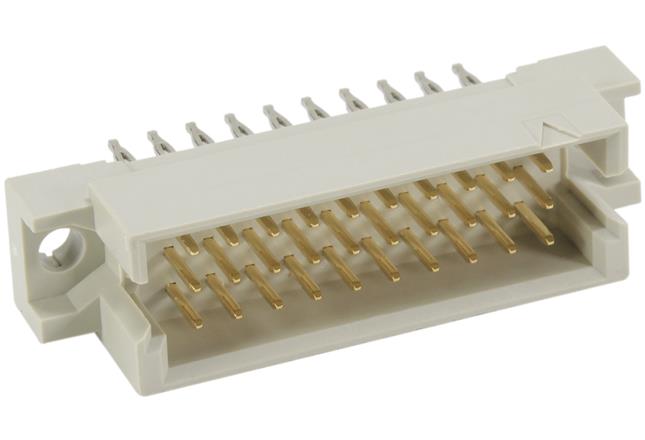

Introducing the DIN SIGNAL TYPE 3R MALE PRESS- Backplane Connector, part of the DIN 41612 series. This connector features a durable plastic housing and a total of 30 contacts spread across 3 rows, making it ideal for high-density applications. With a press-fit termination method and nickel plating, it ensures secure and reliable connections in harsh environments. Operating efficiently within a wide temperature range from -40°C to 105°C, it is suitable for various industrial settings. The 2.54mm pitch and straight mount angle offer versatility in PCB configurations. With a tail length of 5mm and a mating cycle rating of 500, it guarantees longevity and ease of installation. Classified under Class I performance level and compliant with RoHS standards, it upholds quality and environmental responsibility. Rated for 2A and 1kV, it provides excellent electrical performance. Perfect for board-to-board connections, this connector is a vital component for your electronic assembly needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
