| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09291306504 |
| Color: | Pebble Gray |
| Series: | DIN 41612 |
| Gender: | Male |
| Housing Material: | Glass-Filled Plastic |
| Number of Contacts: | 30 |
| Number of Rows: | 3 |
| Termination Method: | Press-Fit |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold Over Electroless Nickel Phosphorus Over Nickel, Nickel |
| Maximum Operating Temperature: | 105 °C |
| Minimum Operating Temperature: | -40 °C |
| Pitch: | 2.54 mm |
| Mount Angle: | Straight |
| Tail Length: | 5 mm |
| Mating Cycles: | 400 cycle |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 2 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09291306504 |
09291306504
Specifications
Detailed Description

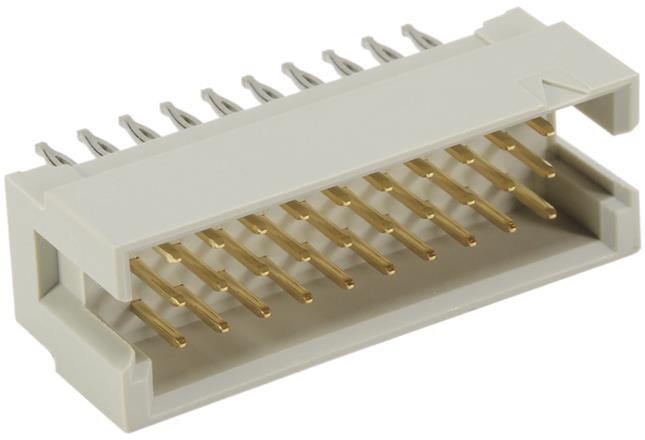

Introducing the DIN 41612 Type 3R Male Connector, a versatile and reliable solution for connecting your motherboard to daughtercard, mezzanine, or PCB to cable. This pebble gray connector features a durable housing made of glass-filled plastic, ensuring long-lasting performance. With 30 contacts arranged in 3 rows and a pitch of 2.54mm, it offers efficient connectivity. The press-fit termination method guarantees secure attachment, while the copper alloy contacts with nickel and gold plating provide excellent conductivity. Operating temperature ranging from -40°C to 105°C, along with UL 94V-0 flammability rating, ensures safety in various environments. RoHS compliant and rated for 2A current and 1kV voltage, this DIN connector is suitable for a wide range of applications in the electronics industry. With a mating cycle of 400 cycles, it offers durability and longevity, making it a reliable choice for your connectivity needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
