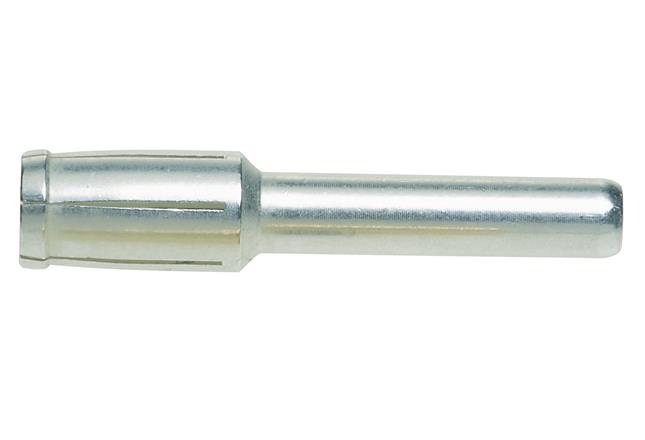

09320006180

HRT09320006180
Heilind Number:HRT09320006180
Manufacturer:HARTING
Manufacturer Number:09320006180
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

HARTING offers a large range of terminations technology for contacts: - Screw terminal - Crimp terminal - Axial screw terminal - Cage-clamp terminal - IDC (Insulation displacement terminal) - Han-Quick Lock® termination technique

More >>

Specifications

AttributeValue
Product Category:
Pin & Socket Housings & Contacts Pin & Socket Contacts
Manufacturer:HARTING
Manufacturer Part Number:HARTING 09320006180
Series:Han® C
Gender:Male
Contact Plating:Silver
Maximum Operating Temperature:125 °C
Minimum Operating Temperature:-40 °C
Contact Resistance:3 mΩ
Contact Design:Machined
Contact Shape:Circular
Current Rating:40 A
Voltage Rating:400 V, 690 V
Contact Insert Type:Pin
Contact Termination:Solder
SKU:HRT09320006180

Detailed Description

HARTING's 09320006180 is a male contact termination technology designed for the Han® C series. With a durable silver contact plating, it ensures reliable performance in harsh environments, with a wide operating temperature range from -40 to 125 °C. The machined circular contact design offers low contact resistance of 3 mΩ, suitable for high-current applications up to 40 A. RoHS compliant and rated for voltages up to 400 V, 690 V, this pin-type contact termination method, using solder, guarantees secure and efficient connectivity. Perfect for connectors, pin & socket contacts, and housings, the 09320006180 is a versatile solution for various industrial applications.
