| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09322006114 |
| Series: | Han® C HMC |
| Gender: | Male |
| Termination Method: | Crimp |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -40 °C |
| Contact Resistance: | 1 mΩ |
| Mating Cycles: | 10000 cycle |
| Wire Size: | 16 AWG |
| Contact Design: | Machined |
| Current Rating: | 40 A |
| Stripping Length: | 9.5 mm |
| SKU: | HRT09322006114 |
09322006114
Specifications
Detailed Description

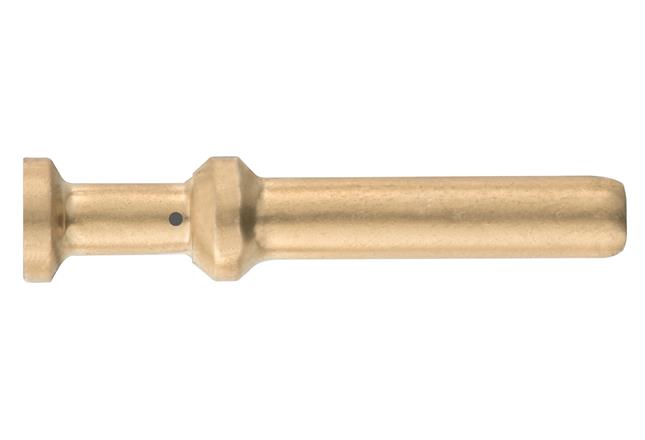

Introducing the Han® C HMC Crimp Contact, a high-performance male connector designed for reliable power transmission in demanding environments. With a maximum operating current of 40A and a conductor cross-section of 1.5mm² (AWG 16), this contact ensures efficient power delivery. Made from copper alloy with HMC gold plating, it offers excellent conductivity and corrosion resistance. The machined contact design guarantees a secure and durable connection, rated for 10,000 mating cycles. With a wide operating temperature range (-40°C to 125°C) and RoHS compliance, it is suitable for various applications. Perfect for use in Crimp Wire Housings, this contact, 09322006114, is a must-have for your connectivity needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
