09322006117

HRT09322006117
Heilind Number:HRT09322006117
Manufacturer:HARTING
Manufacturer Number:09322006117
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

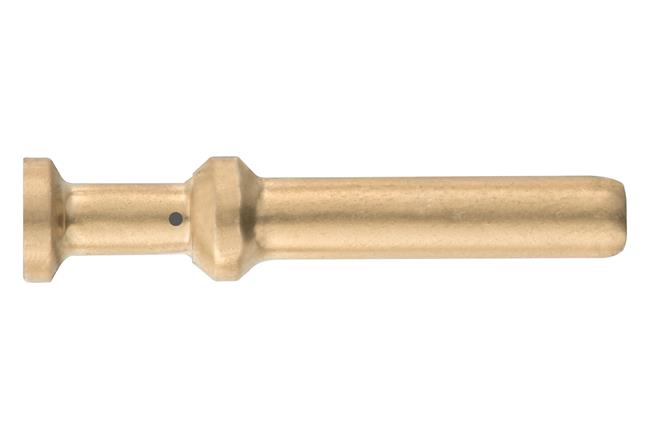

Han® C, HMC, Crimp contact; Operating current: ≤40A; Male; Copper alloy; HMC gold plated; Conductor cross-section: 10mm²; AWG 8

More >>

Specifications

AttributeValue
Product Category:
Crimp Wire Housings & Contacts Crimp Wire Contacts
Manufacturer:HARTING
Manufacturer Part Number:HARTING 09322006117
Series:Han® C HMC
Gender:Male
Termination Method:Crimp
Contact Material:Copper Alloy
Contact Plating:Gold
Maximum Operating Temperature:125 °C
Minimum Operating Temperature:-40 °C
Contact Resistance:1 mΩ
Mating Cycles:10000 cycle
Wire Size:8 AWG
Contact Design:Machined
Current Rating:40 A
Stripping Length:15 mm
SKU:HRT09322006117

Detailed Description

Han® C, HMC, Crimp contact ( 09322006117) is a high-performance male connector designed for reliable power transmission in industrial applications. Made of durable copper alloy with HMC gold plating, it ensures excellent conductivity and corrosion resistance. With a maximum operating current of 40A, it can handle heavy loads with ease. The machined contact design guarantees a secure and stable connection, while the crimp termination method allows for quick and easy installation. RoHS compliant and tested for 10,000 mating cycles, this contact offers long-lasting performance even in harsh environments. Suitable for wire sizes up to 8 AWG, it accommodates conductor cross-sections of 10mm², making it ideal for power-intensive systems. With a wide operating temperature range from -40°C to 125°C, it is suitable for use in diverse industrial settings. Ensure efficient power transmission with the Han® C HMC Crimp contact.
