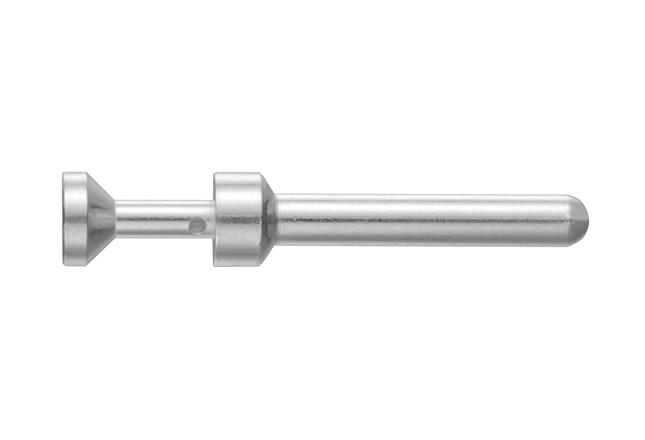

09330006106

HRT09330006106
Heilind Number:HRT09330006106
Manufacturer:HARTING
Manufacturer Number:09330006106
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

HARTING offers a large range of terminations technology for contacts: - Screw terminal - Crimp terminal - Axial screw terminal - Cage-clamp terminal - IDC (Insulation displacement terminal) - Han-Quick Lock® termination technique

More >>

Specifications

AttributeValue
Product Category:
Crimp Wire Housings & Contacts Crimp Wire Contacts
Manufacturer:HARTING
Manufacturer Part Number:HARTING 09330006106
Series:Han E®
Gender:Male
Termination Method:Crimp
Contact Material:Copper Alloy
Contact Plating:Silver
Maximum Operating Temperature:125 °C
Minimum Operating Temperature:-40 °C
Contact Resistance:1 mΩ
Mating Cycles:500 cycle
Wire Size:12 AWG
Contact Design:Machined
Current Rating:16 A
Stripping Length:7.5 mm
SKU:HRT09330006106

Detailed Description

Introducing the HARTING 09330006106, a high-performance crimp contact designed for male connectors in the Han E® series. With a robust construction featuring copper alloy with silver plating, this contact ensures reliable conductivity in demanding industrial environments. Its machined design and 3 MM2 wire size capability make it ideal for power and signal transmission applications, with a current rating of 16 A. Operating efficiently in temperatures ranging from -40 °C to 125 °C, and with a low contact resistance of 1 mΩ, this contact guarantees optimal performance. With RoHS compliance and 500 mating cycles durability, it meets strict quality standards for sustainable and long-lasting connectivity solutions. Perfect for use in various industries, from automotive to telecommunications, the 09330006106 is the ultimate choice for efficient and secure crimp terminations.
