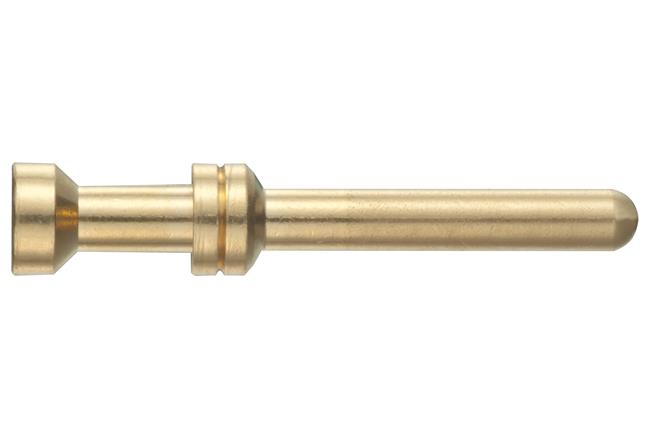

09330006117

HRT09330006117
Heilind Number:HRT09330006117
Manufacturer:HARTING
Manufacturer Number:09330006117
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

HARTING offers a large range of terminations technology for contacts: - Screw terminal - Crimp terminal - Axial screw terminal - Cage-clamp terminal - IDC (Insulation displacement terminal) - Han-Quick Lock® termination technique

More >>

Specifications

AttributeValue
Product Category:
Crimp Wire Housings & Contacts Crimp Wire Contacts
Manufacturer:HARTING
Manufacturer Part Number:HARTING 09330006117
Gender:Male
Series:Han E®
Wire Size:26 - 22 AWG
Mating Cycles:500 cycle
Contact Design:Machined
Current Rating:16 A
Contact Plating:Gold
Contact Material:Copper Alloy
Stripping Length:7.5 mm
Contact Resistance:1 mΩ
Termination Method:Crimp
Maximum Operating Temperature:125 °C
Minimum Operating Temperature:-40 °C
SKU:HRT09330006117

Detailed Description

Introducing the HARTING Crimp Contact, male, part of the Han E® series. This high-quality termination technology offers reliable connectivity for various applications. Made from durable copper alloy with gold plating, this contact ensures optimal conductivity and corrosion resistance. With a wide operating temperature range from -40°C to 125°C, it is suitable for use in diverse environments. The machined contact design guarantees precise and secure connections, with a low contact resistance of 1 mΩ. Rated for 16 A current, it is ideal for power transmission. RoHS compliant and featuring a stripping length of 7.5 mm, this contact meets stringent industry standards. Suitable for wire sizes 26-22 AWG, it offers flexibility in installation. With a mating cycle of 500, it ensures long-lasting performance. Upgrade your connectivity with the HARTING Crimp Contact, delivering efficiency and durability in one compact package.
