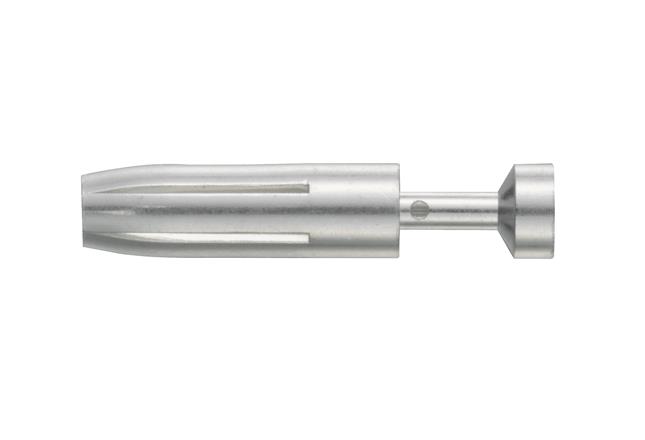

09330006206

HRT09330006206
Heilind Number:HRT09330006206
Manufacturer:HARTING
Manufacturer Number:09330006206
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

HARTING offers a large range of terminations technology for contacts: - Screw terminal - Crimp terminal - Axial screw terminal - Cage-clamp terminal - IDC (Insulation displacement terminal) - Han-Quick Lock® termination technique

More >>

Specifications

AttributeValue
Product Category:
Crimp Wire Housings & Contacts Crimp Wire Contacts
Manufacturer:HARTING
Manufacturer Part Number:HARTING 09330006206
Series:Han E®
Gender:Female
Termination Method:Crimp
Contact Material:Copper Alloy
Contact Plating:Silver
Maximum Operating Temperature:125 °C
Minimum Operating Temperature:-40 °C
Contact Resistance:1 mΩ
Mating Cycles:500 cycle
Wire Size:12 AWG
Contact Design:Machined
Current Rating:16 A
Stripping Length:7.5 mm
SKU:HRT09330006206

Detailed Description

HARTING offers a versatile solution for termination technology with the 09330006206 Crimp Contact. Designed for female connectors in the Han E® series, this contact is ideal for secure and reliable wire terminations. Made of copper alloy with silver plating, it ensures efficient conductivity and durability, even in harsh environments with a wide operating temperature range from -40°C to 125°C. With a contact resistance of just 1 mΩ and a current rating of 16 A, it guarantees optimal performance. The crimp termination method allows for easy and efficient installation, with a wire size of 12 AWG and stripping length of 7.5 mm. RoHS compliant and with a mating cycle of 500, this contact is a high-quality and reliable choice for a variety of applications.
