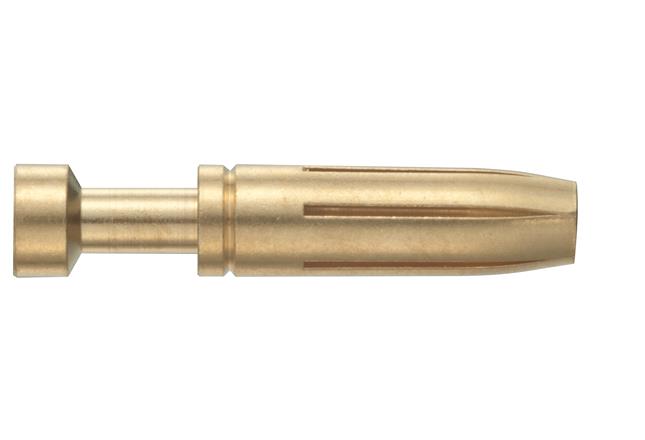

09330006215

HRT09330006215
Heilind Number:HRT09330006215
Manufacturer:HARTING
Manufacturer Number:09330006215
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

HARTING offers a large range of terminations technology for contacts: - Screw terminal - Crimp terminal - Axial screw terminal - Cage-clamp terminal - IDC (Insulation displacement terminal) - Han-Quick Lock® termination technique

More >>

Specifications

AttributeValue
Product Category:
Crimp Wire Housings & Contacts Crimp Wire Contacts
Manufacturer:HARTING
Manufacturer Part Number:HARTING 09330006215
Series:Han E®
Gender:Female
Termination Method:Crimp
Contact Material:Copper Alloy
Contact Plating:Gold
Maximum Operating Temperature:125 °C
Minimum Operating Temperature:-40 °C
Contact Resistance:1 mΩ
Mating Cycles:500 cycle
Wire Size:18 AWG
Contact Design:Machined
Current Rating:16 A
Stripping Length:7.5 mm
SKU:HRT09330006215

Detailed Description

Introducing the HARTING Han E® Crimp Contact, female, designed for high-performance connectivity in industrial applications. With a wire size of 18 AWG and a stripping length of 7.5mm, this contact ensures secure and reliable termination. The contact material is copper alloy with gold plating, guaranteeing excellent conductivity and corrosion resistance. Operating within a wide temperature range from -40°C to 125°C, it is suitable for harsh environments. The machined contact design and crimp termination method provide durable and maintenance-free connections. With a current rating of 16A and a low contact resistance of 1mΩ, it meets the demands of power transmission. RoHS compliant and offering 500 mating cycles, this contact is a dependable solution for your connectivity needs.
