09332006119

Heilind Number:	HRT09332006119
Manufacturer:	HARTING
Manufacturer Number:	09332006119
Datasheet:	Datasheet
ECAD Model:

Description:

HARTING offers a large range of terminations technology for contacts: - Screw terminal - Crimp terminal - Axial screw terminal - Cage-clamp terminal - IDC (Insulation displacement terminal) - Han-Quick Lock® termination technique

More >>

Specifications

Attribute	Value
Product Category:	Crimp Wire Housings & Contacts Crimp Wire Contacts
Manufacturer:	HARTING
Manufacturer Part Number:	HARTING 09332006119
Series:	Han E® HMC
Gender:	Male
Termination Method:	Crimp
Contact Material:	Copper Alloy
Contact Plating:	Gold
Maximum Operating Temperature:	125 °C
Minimum Operating Temperature:	-40 °C
Contact Resistance:	1 mΩ
Mating Cycles:	10000 cycle
Wire Size:	12 AWG
Contact Design:	Machined
Current Rating:	16 A
Stripping Length:	7.5 mm
SKU:	HRT09332006119

Detailed Description

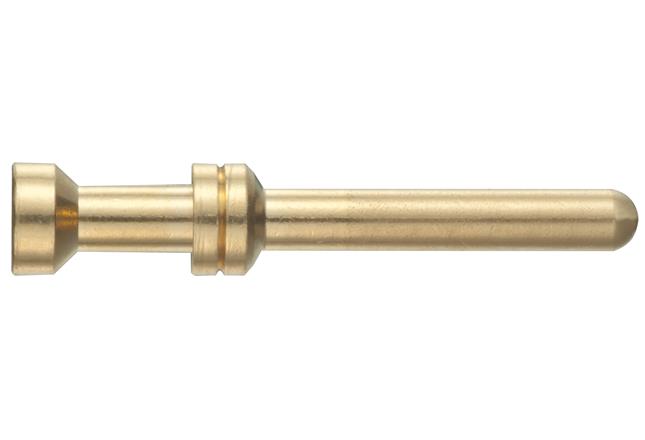

Introducing the HARTING 09332006119 Crimp Contact, a high-performance male termination solution designed for the Han E® HMC series. This contact features a robust construction with a copper alloy base and gold plating for optimal conductivity and durability. With a wire size compatibility of 12 AWG and a current rating of 16 A, it is suitable for a wide range of applications. Its crimp termination method ensures secure and reliable connections, while its machined contact design guarantees precision and consistency. RoHS compliant and capable of withstanding temperatures ranging from -40 °C to 125 °C, this contact is built to meet the demands of industrial environments. With a low contact resistance of 1 mΩ and a mating cycle rating of 10000 cycles, it offers long-lasting performance and efficiency. Trust the HARTING 09332006119 for all your connectivity needs.
