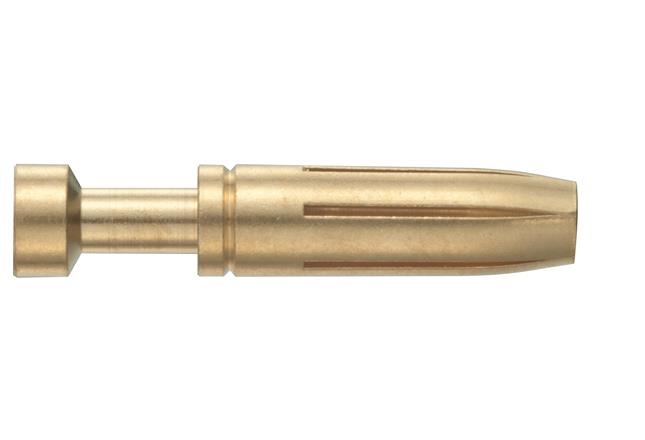

09332006222

HRT09332006222
Heilind Number:HRT09332006222
Manufacturer:HARTING
Manufacturer Number:09332006222
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

HARTING offers a large range of terminations technology for contacts: - Screw terminal - Crimp terminal - Axial screw terminal - Cage-clamp terminal - IDC (Insulation displacement terminal) - Han-Quick Lock® termination technique

More >>

Specifications

AttributeValue
Product Category:
Crimp Wire Housings & Contacts Crimp Wire Contacts
Manufacturer:HARTING
Manufacturer Part Number:HARTING 09332006222
Series:Han E® HMC
Gender:Female
Termination Method:Crimp
Contact Material:Copper Alloy
Contact Plating:Gold
Maximum Operating Temperature:125 °C
Minimum Operating Temperature:-40 °C
Contact Resistance:1 mΩ
Mating Cycles:10000 cycle
Wire Size:20 AWG
Contact Design:Machined
Current Rating:16 A
Stripping Length:7.5 mm
SKU:HRT09332006222

Detailed Description

Introducing the HARTING 09332006222, a high-performance crimp contact designed for the Han E® HMC series. This female contact, with a wire size of 20 AWG and a stripping length of 7.5mm, is meticulously crafted from copper alloy with gold plating, ensuring optimal conductivity and durability. Operating flawlessly in temperatures ranging from -40°C to 125°C, it boasts a low contact resistance of 1mΩ and can endure up to 10,000 mating cycles. With a current rating of 16A, it is ideal for demanding industrial applications. RoHS compliant and featuring a machined contact design, this contact guarantees reliable and efficient connectivity. Trust the 09332006222 for your critical connectivity needs.
