| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09352310331 |
| Color: | Black |
| Series: | Han® PushPull (V14) |
| Housing Material: | Plastic |
| Number of Contacts: | 5 |
| Termination Method: | Crimp |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 70 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP67 |
| Mating Cycles: | 500 cycle |
| Wire Size: | 0.25 - 2.5 mm² |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 16 A |
| Voltage Rating: | 690 V |
| SKU: | HRT09352310331 |
09352310331
Specifications
Detailed Description

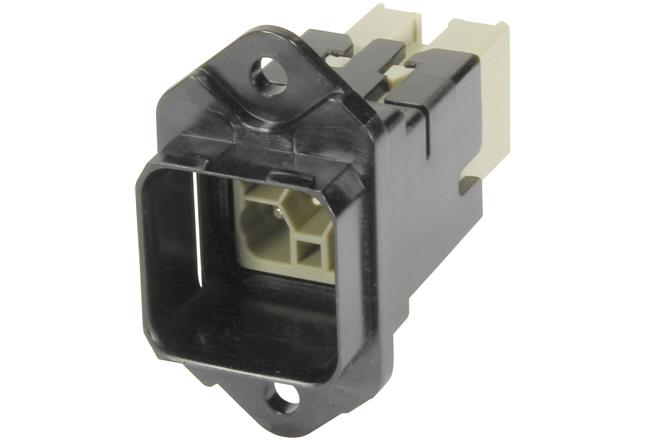

Introducing the Han® PushPull Power Panel Feed Trough Set, designed for seamless connectivity in demanding industrial environments. With a crimp termination method and a rated current of 16A, this set features four silver-plated contacts and accommodates a conductor cross-section of 0.25mm². Its rugged black plastic housing ensures durability, while its IP67 rating guarantees protection against dust and water ingress. Operating temperatures ranging from -40°C to 70°C make it suitable for a wide range of applications. RoHS compliant and rated for 690V, this set is not only reliable but also environmentally friendly. Perfect for heavy-duty power applications, it offers a secure and efficient solution for your connectivity needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
