| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09352320401 |
| Series: | Han® PushPull (V14) |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 5 |
| Termination Method: | Quick Lock |
| Contact Material: | Copper Alloy |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 70 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP67 |
| Mating Cycles: | 500 cycle |
| Wire Size: | 0.5 - 2.5 mm² |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 16 A |
| Voltage Rating: | 600 V |
| SKU: | HRT09352320401 |
09352320401
Specifications
Detailed Description

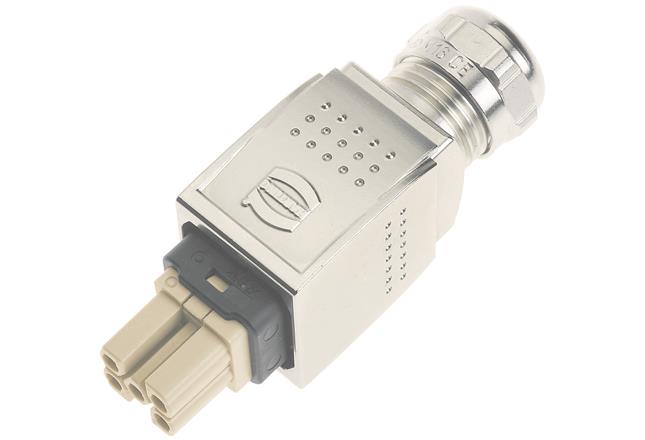

Han® PushPull Power Connector set featuring Han-Quick Lock® termination for easy and secure installation. Rated for a maximum current of 16A with four contacts, this set is designed for heavy-duty power applications. The Die Cast Zinc housing ensures durability, with IP67 ingress protection for reliable performance in harsh environments. Contact material is Copper Alloy with Silver plating, suitable for high conductivity. With a wide operating temperature range from -40°C to 70°C, this connector set is versatile and dependable. RoHS compliant and UL 94V-0 rated for safety and environmental standards. Suitable for wire sizes ranging from 0.5 to 2.5 mm², accommodating various power requirements. Ideal for industrial and commercial applications, offering 500 mating cycles for long-lasting use.
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 05/30/2023 | PCN23-006CNUS - Optical Design Change. Only optical change, no impact on mechanical or electrical function. | Download | |||
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
