| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09352340401 |
| Series: | Han® PushPull (V14) |
| IP Rating: | IP67 |
| Wire Size: | 0.25 - 1.5 mm² |
| Mating Cycles: | 500 cycle |
| Current Rating: | 16 A |
| Voltage Rating: | 600 V |
| Contact Plating: | Silver |
| Contact Material: | Copper Alloy |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 5 |
| Termination Method: | Quick Lock |
| Flammability Rating: | UL 94V-0 |
| Maximum Operating Temperature: | 70 °C |
| Minimum Operating Temperature: | -40 °C |
| SKU: | HRT09352340401 |
09352340401
Specifications
Detailed Description

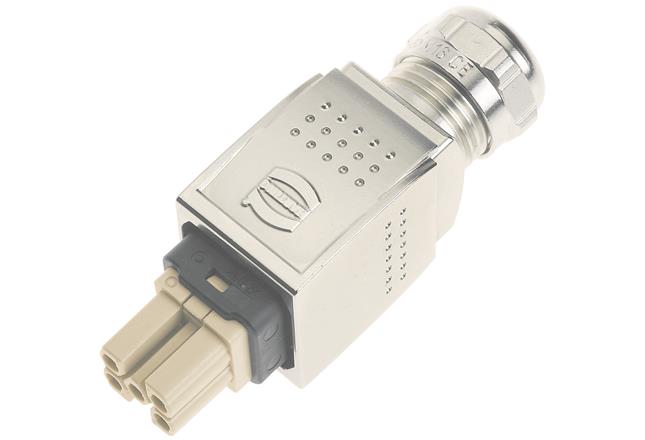

The Han® PushPull Power Connector set features Han-Quick Lock® termination for easy and secure installation. With a rated current of 16A and 4 contacts, it ensures reliable power transmission. The die-cast zinc housing provides durability, while the silver-plated copper alloy contacts offer excellent conductivity. Suitable for conductor cross-sections of 0.25mm² to 1.5mm², it meets IP67 standards for dust and water resistance. Operating between -40°C to 70°C, it is designed for reliable performance in harsh environments. With UL 94V-0 flammability rating and RoHS compliance, it guarantees safety and environmental responsibility. Suitable for heavy-duty applications, the Han® PushPull Connector set is a dependable solution for power connectivity needs.
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 05/30/2023 | PCN23-006CNUS - Optical Design Change. Only optical change, no impact on mechanical or electrical function. | Download | |||
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
