| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09352620401 |
| Series: | Han® PushPull (V14) |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 10 |
| Termination Method: | Crimp |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -40 °C |
| Pitch: | 2.4 mm, 3 mm |
| IP Rating: | IP67 |
| Mating Cycles: | 500 cycle |
| Wire Size: | 0.13 - 0.82 mm² |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 5 A |
| Voltage Rating: | 50 V |
| SKU: | HRT09352620401 |
09352620401
Specifications
Detailed Description

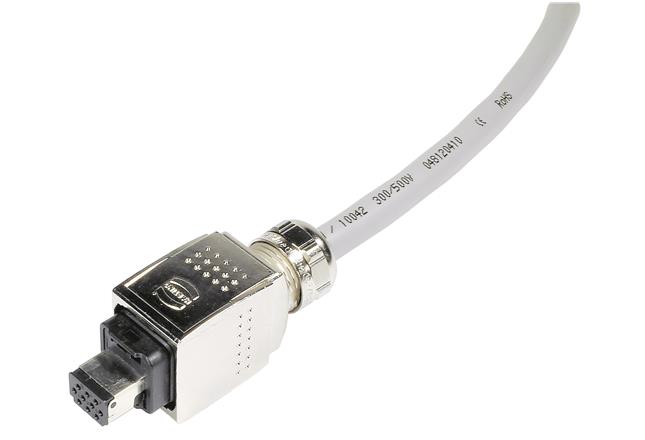

The Han® PushPull Signal Connector Set is a reliable and efficient solution for AIDA compliant applications. With a crimp termination method and a rated current of 5A, this set includes 10 contacts for secure connectivity. The conductor cross-section of 0.25 ensures optimal performance. Part of the Han® PushPull (V14) series, the housing is constructed of durable die-cast zinc. Operating in temperatures ranging from -40 °C to 85 °C, with an IP67 rating for dust and water resistance, this connector set is suitable for various environments. With a pitch of 3 mm and 2.4 mm, it offers versatile installation options. UL 94V-0 rated for flammability, and capable of 500 mating cycles, this connector set guarantees long-lasting and safe operation. Perfect for heavy-duty power applications, it meets the highest standards of quality and performance.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
