| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09721646907 |
| Series: | DIN 41612 |
| Gender: | Male |
| Housing Material: | Glass-Filled Plastic |
| Number of Contacts: | 64 |
| Number of Rows: | 2 |
| Termination Method: | Wire Wrap |
| Contact Plating: | Gold Over Nickel Phosphorus Over Nickel, Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| Mount Angle: | Straight |
| Tail Length: | 13 mm |
| Mating Cycles: | 400 cycle |
| Performance Level: | Class II |
| Current Rating: | 2 A |
| Voltage Rating: | 1.55 kV, 1 kV |
| SKU: | HRT09721646907 |
09721646907
Specifications
Detailed Description

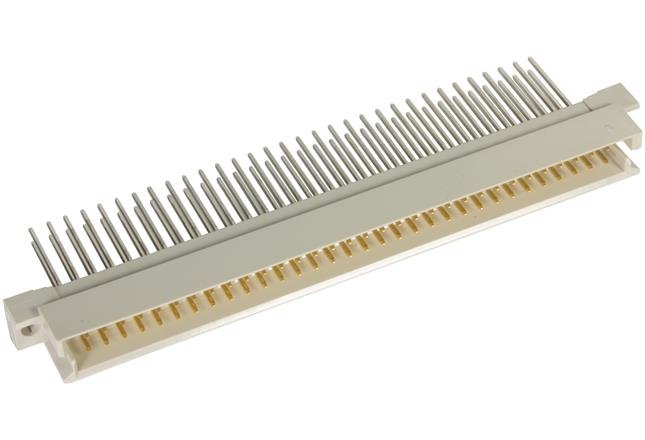

Introducing the DIN 41612 Type Q Male Connector, a versatile and reliable solution for your connectivity needs. This connector features a durable housing made of thermoplastic resin with glass-fibre filling, ensuring robust performance in various environments. With 64 contacts arranged in two rows, it offers ample connectivity options for your PCB to cable or cable to cable connections. The wire wrap termination method guarantees secure and efficient installation. Nickel and gold plating over nickel phosphorus ensures excellent conductivity and corrosion resistance. Operating at temperatures ranging from -55°C to 125°C, it is suitable for a wide range of applications. This connector, part of the DIN 41612 series, is designed for high-performance Class II standards, with a current rating of 2A and voltage ratings of 1.55kV and 1kV. Trust in the quality and reliability of our products for your connectivity solutions.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
