| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09721646985 |
| Color: | Pebble Gray |
| Series: | DIN 41612 |
| Gender: | Male |
| Housing Material: | Glass-Filled Plastic |
| Number of Contacts: | 64 |
| Number of Rows: | 2 |
| Termination Method: | Press-Fit, Wire Wrap |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold Over Electroless Nickel Phosphorus Over Nickel, Nickel |
| Maximum Operating Temperature: | 105 °C |
| Minimum Operating Temperature: | -40 °C |
| Pitch: | 2.54 mm |
| Mount Angle: | Straight |
| Tail Length: | 13 mm |
| Mating Cycles: | 400 cycle |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 2 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09721646985 |
09721646985
Specifications
Detailed Description

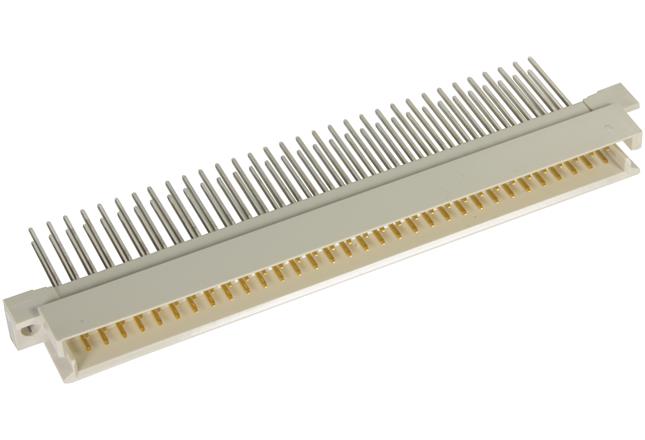

Introducing the 09721646985, a versatile DIN 41612 Type Q male connector designed for seamless motherboard to daughtercard, mezzanine, and PCB to cable connections. Crafted from durable thermoplastic resin with glass-fibre filling, this pebble gray connector ensures reliable performance in a range of environments. Featuring 64 contacts in a 2-row configuration, it supports Press-Fit and Wire Wrap termination methods for easy installation. The copper alloy contacts with nickel and gold plating guarantee excellent conductivity, while the UL 94V-0 flammability rating ensures safety. With a maximum operating temperature of 105°C and a voltage rating of 1 kV, this connector is suitable for various industrial applications. Trust in the 09721646985 for efficient and secure board-to-board connectivity.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
