| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09731066903 |
| Pitch: | 2.54 mm |
| Gender: | Male |
| Series: | DIN 41612 |
| Mount Angle: | Straight |
| Tail Length: | 4 mm |
| Mating Cycles: | 400 cycle |
| Current Rating: | 2 A |
| Number of Rows: | 3 |
| Voltage Rating: | 1 kV |
| Contact Plating: | Gold Over Electroless Nickel Phosphorus Over Nickel, Tin Over Nickel |
| Housing Material: | Glass-Filled Plastic |
| Performance Level: | Class II |
| Number of Contacts: | 16 |
| Termination Method: | Solder |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| SKU: | HRT09731066903 |
09731066903
Specifications
Detailed Description

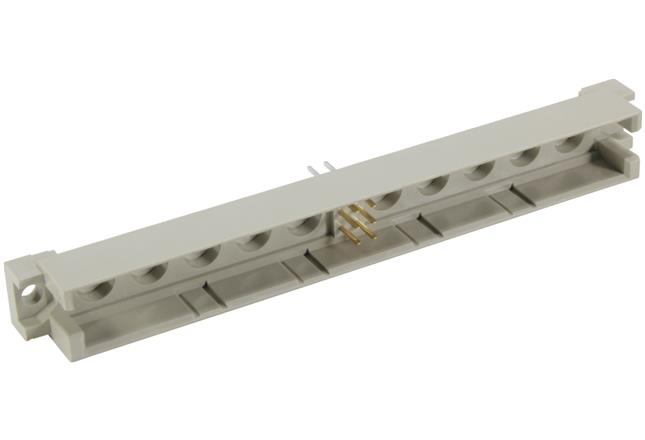

Introducing the 09731066903, a high-performance DIN 41612 Type M invers Connector designed for male connections in electronic systems. Crafted from durable thermoplastic resin with glass-fibre filling, this connector ensures reliable and secure contact. Featuring 16 contacts arranged in 3 rows with a pitch of 2.54mm, it is ideal for backplane and PCB applications. With a maximum operating temperature of 125°C and a current rating of 2A, it guarantees efficient performance even in demanding environments. The solder termination method and tail length of 4mm facilitate easy installation. Gold and nickel plating offer enhanced conductivity and corrosion resistance. Compliant with Class II standards, this connector is built to last, with a mating cycle of 400 ensuring long-term reliability. Trusted in various industries, it is the perfect solution for your connectivity needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
