| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09731426903 |
| Series: | DIN 41612 |
| Gender: | Male |
| Housing Material: | Glass-Filled Plastic |
| Number of Contacts: | 48 |
| Number of Rows: | 3 |
| Termination Method: | Solder |
| Contact Plating: | Gold Over Electroless Nickel Phosphorus Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| Mount Angle: | Straight |
| Tail Length: | 4 mm |
| Mating Cycles: | 400 cycle |
| Performance Level: | Class II |
| Current Rating: | 2 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09731426903 |
09731426903
Specifications
Detailed Description

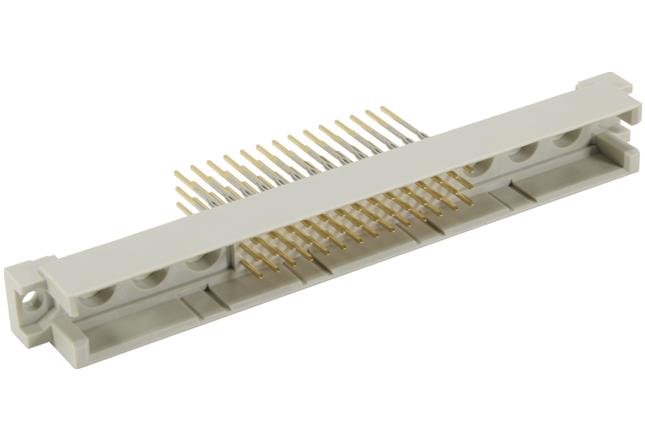

Introducing the DIN 41612 Type M invers Male Connector, a high-performance solution for your connectivity needs. Crafted from thermoplastic resin with glass-fibre filling, this connector ensures durability and reliability in even the most demanding environments. With 48 contacts arranged in 3 rows, it offers ample connectivity options. The solder termination method guarantees secure and stable connections. Featuring contact plating of Tin over Nickel, Gold over Electroless Nickel Phosphorus, and Nickel, this connector ensures excellent conductivity and corrosion resistance. Operating temperature ranges from -55°C to 125°C, making it suitable for a wide range of applications. With a pitch of 2.54mm and a straight mount angle, it is easy to integrate into your existing setup. Whether used in backplane connectors, PCB connectors, or board-to-board connections, the DIN 41612 Type M invers Male Connector delivers exceptional performance.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
