| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09731426974 |
| Series: | DIN 41612 |
| Gender: | Male |
| Housing Material: | Glass-Filled Plastic |
| Number of Contacts: | 48 |
| Number of Rows: | 3 |
| Termination Method: | Press-Fit, Wire Wrap |
| Contact Plating: | Gold Over Nickel Phosphorus Over Nickel, Nickel |
| Maximum Operating Temperature: | 105 °C |
| Minimum Operating Temperature: | -40 °C |
| Pitch: | 2.54 mm |
| Mount Angle: | Straight |
| Tail Length: | 13 mm |
| Mating Cycles: | 400 cycle |
| Performance Level: | Class II |
| Current Rating: | 2 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09731426974 |
09731426974
Specifications
Detailed Description

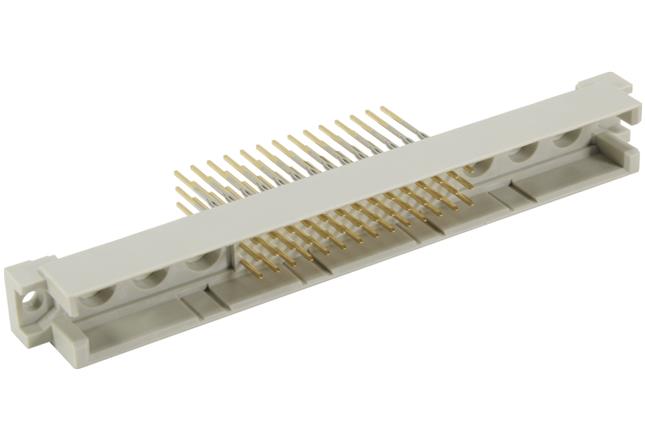

Introducing the DIN 41612 Type M invers Male Connector, a high-performance solution for your connectivity needs. Constructed with durable thermoplastic resin and glass-fiber filling, this connector ensures reliable operation even in demanding environments. With 48 contacts arranged in 3 rows, it offers ample connectivity options. The Press-Fit and Wire Wrap termination methods make installation a breeze. Featuring nickel and gold plating, it guarantees excellent conductivity and corrosion resistance. Operating temperature ranging from -40°C to 105°C, it is suitable for a wide range of applications. With a pitch of 2.54mm and straight mount angle, it is versatile and easy to integrate. RoHS compliant and rated for 1kV voltage, it meets stringent quality standards. Perfect for Backplane Connectors, Board-to-Board PCB connectors, and more, this connector is a reliable choice for your projects.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
