09731646903

HRT09731646903
Heilind Number:HRT09731646903
Manufacturer:HARTING
Manufacturer Number:09731646903
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

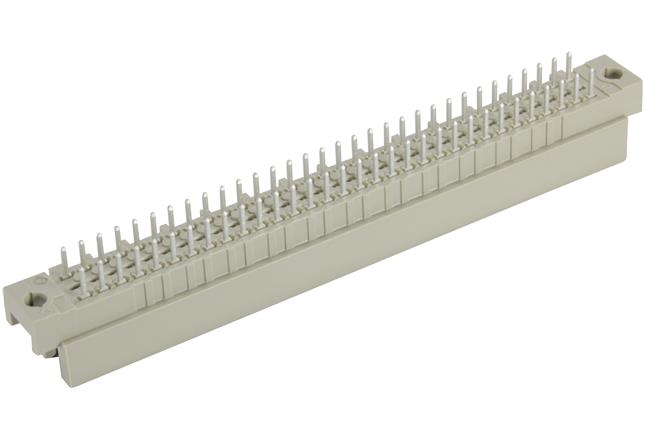

DIN 41612, Type R, Connector; Male connector; Thermoplastic resin, glass-fibre filled; Motherboard to daughtercard, Mezzanine, PCB to cable

More >>

Specifications

AttributeValue
Product Category:
Board To Board PCB Connectors Mezzanine & Board Stacking Connectors
Manufacturer:HARTING
Manufacturer Part Number:HARTING 09731646903
Color:Pebble Gray
Series:DIN 41612
Gender:Male
Housing Material:Glass-Filled Plastic
Number of Contacts:64
Number of Rows:3
Termination Method:Solder
Contact Material:Copper Alloy
Contact Plating:Gold Over Electroless Nickel Phosphorus Over Nickel, Tin Over Nickel
Maximum Operating Temperature:125 °C
Minimum Operating Temperature:-55 °C
Pitch:2.54 mm
Mount Angle:Straight
Tail Length:4 mm
Mating Cycles:400 cycle
Flammability Rating:UL 94V-0
Current Rating:2 A
Voltage Rating:1 kV
SKU:HRT09731646903

Detailed Description

Introducing the 09731646903 DIN 41612 Type R Connector, a versatile male connector designed for seamless motherboard to daughtercard, mezzanine, and PCB to cable connections. Constructed from durable thermoplastic resin with glass-fibre filling, this pebble gray connector ensures reliable performance in various applications. Featuring 64 contacts in 3 rows with a pitch of 2.54mm, it offers efficient signal transmission. The solder termination method and copper alloy contacts plated with tin over nickel, gold over electroless nickel phosphorus, guarantee secure and durable connections. With a wide operating temperature range from -55°C to 125°C and a voltage rating of 1kV, this connector is suitable for demanding environments. RoHS compliant and UL 94V-0 rated for safety, it meets stringent quality standards. Whether for industrial, telecommunications, or aerospace applications, the 09731646903 is the perfect choice for board to board PCB connections.
