| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09731966902 |
| Color: | Pebble Gray |
| Series: | DIN 41612 |
| Gender: | Male |
| Housing Material: | Glass-Filled Plastic |
| Number of Contacts: | 96 |
| Number of Rows: | 3 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold Over Electroless Nickel Phosphorus Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| Mount Angle: | Straight |
| Tail Length: | 2.5 mm |
| Mating Cycles: | 400 cycle |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 2 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09731966902 |
09731966902
Specifications
Detailed Description

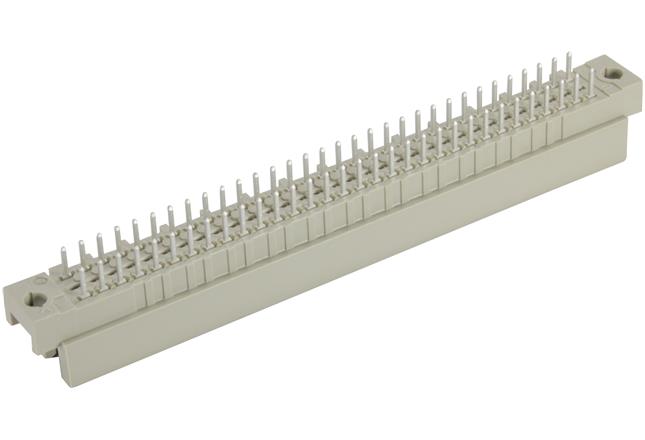

Introducing the DIN 41612 Type R Connector, a versatile and reliable solution for connecting motherboards to daughtercards, mezzanines, and PCBs to cables. This male connector features a durable housing made of glass-filled plastic in a sleek Pebble Gray color. With 96 contacts arranged in 3 rows and a pitch of 2.54mm, it offers efficient signal transmission. Solder termination ensures secure connectivity, while the copper alloy contacts with tin plating guarantee excellent conductivity. Operating at temperatures ranging from -55°C to 125°C, this connector is suitable for a wide range of environments. With a mating cycle of 400, it is designed for long-lasting performance. RoHS compliant and with a voltage rating of 1kV, it meets international standards for safety and reliability. Upgrade your connectivity with the DIN 41612 Type R Connector.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
