| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09733966902 |
| Color: | Pebble Gray |
| Series: | DIN 41612 |
| Gender: | Male |
| Housing Material: | Glass-Filled Plastic |
| Number of Contacts: | 96 |
| Number of Rows: | 3 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| Mount Angle: | Straight |
| Tail Length: | 2.5 mm |
| Mating Cycles: | 400 cycle |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 2 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09733966902 |
09733966902
Specifications
Detailed Description

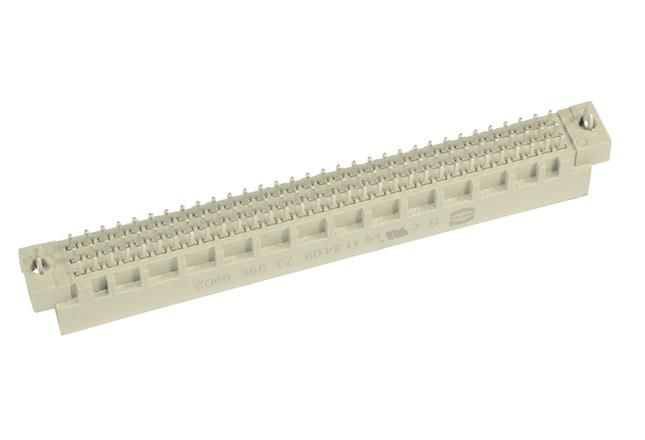

Introducing the DIN 41612 Type R Connector, a male connector designed for a variety of applications including motherboard to daughtercard, mezzanine, and PCB to cable connections. Constructed with thermoplastic resin and glass-fibre filled for durability and reliability, this pebble gray connector features 96 contacts in 3 rows with a 2.54mm pitch. With a solder termination method and copper alloy contacts plated with tin over nickel and noble metal over nickel, it ensures secure and efficient connectivity. Operating at temperatures ranging from -55°C to 125°C, it is suitable for a wide range of environments. UL 94V-0 rated for flammability, and with a current rating of 2A and voltage rating of 1kV, it guarantees safety and performance. Ideal for board to board PCB connections, this DIN 41612 connector ( 09733966902) is a reliable solution for your connectivity needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
