| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09734966801 |
| Color: | Pebble Gray |
| Series: | DIN 41612 |
| Gender: | Female |
| Housing Material: | Glass-Filled Plastic |
| Number of Contacts: | 96 |
| Number of Rows: | 3 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| Mount Angle: | Right Angle |
| Tail Length: | 3 mm |
| Mating Cycles: | 400 cycle |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 2 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09734966801 |
09734966801
Specifications
Detailed Description

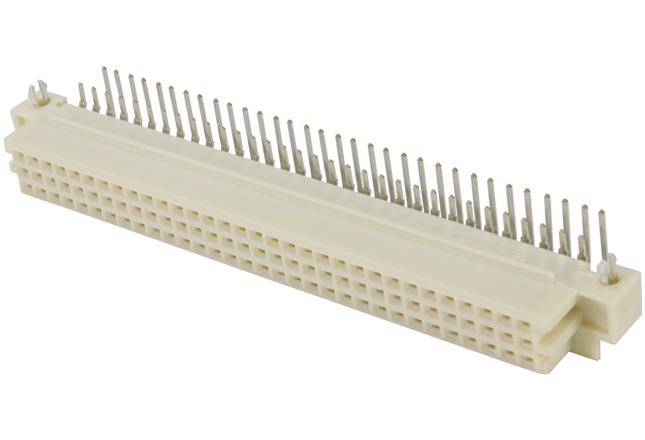

Introducing the DIN 41612 Type R Connector, a female connector designed for reliable and efficient motherboard to daughtercard and extender card connections. Crafted from durable thermoplastic resin with glass-fibre filling, this Pebble Gray connector ensures optimal performance even in demanding environments. With 96 contacts arranged in 3 rows and a pitch of 2.54mm, it offers seamless connectivity. The solder termination method, along with copper alloy contacts plated with tin over nickel and noble metal, guarantees secure and lasting connections. Rated for a wide temperature range from -55°C to 125°C, it is suitable for various applications. With a high current rating of 2A and voltage rating of 1kV, this connector is both reliable and efficient. Its UL 94V-0 flammability rating and RoHS compliance ensure safety and environmental responsibility. Trust in the DIN 41612 Type R Connector for your board to board PCB connection needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
