| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09751206904 |
| Color: | Pebble Gray |
| Series: | DIN 41612 |
| Gender: | Male |
| Housing Material: | Glass-Filled Plastic |
| Number of Contacts: | 20 |
| Number of Rows: | 2 |
| Termination Method: | Press-Fit |
| Contact Material: | Copper Alloy |
| Contact Plating: | Nickel, Noble Metal Over Nickel |
| Maximum Operating Temperature: | 105 °C |
| Minimum Operating Temperature: | -40 °C |
| Pitch: | 2.54 mm |
| Mount Angle: | Straight |
| Tail Length: | 5 mm |
| Mating Cycles: | 400 cycle |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 2 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09751206904 |
09751206904
Specifications
Detailed Description

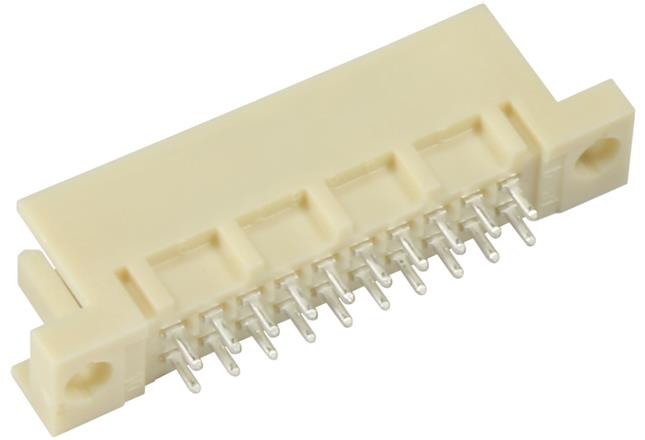

Introducing the DIN 41612 Type 3Q Male Connector, a reliable and high-performance solution for connecting motherboards to daughtercards and mezzanine boards. Made from thermoplastic resin with glass-fibre filling, this pebble gray connector ensures durability and stability in various operating environments. Featuring press-in termination for easy and secure installation, it offers 20 contacts in a 2-row configuration with a 2.54mm pitch. The copper alloy contacts with nickel plating guarantee excellent conductivity and corrosion resistance, with a maximum operating temperature of 105°C and a minimum of -40°C. Rated for 400 mating cycles, this connector is ideal for board-to-board and PCB applications, with a current rating of 2A and voltage rating of 1kV. Compliant with UL 94V-0 flammability standards, it is a dependable choice for your connectivity needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
